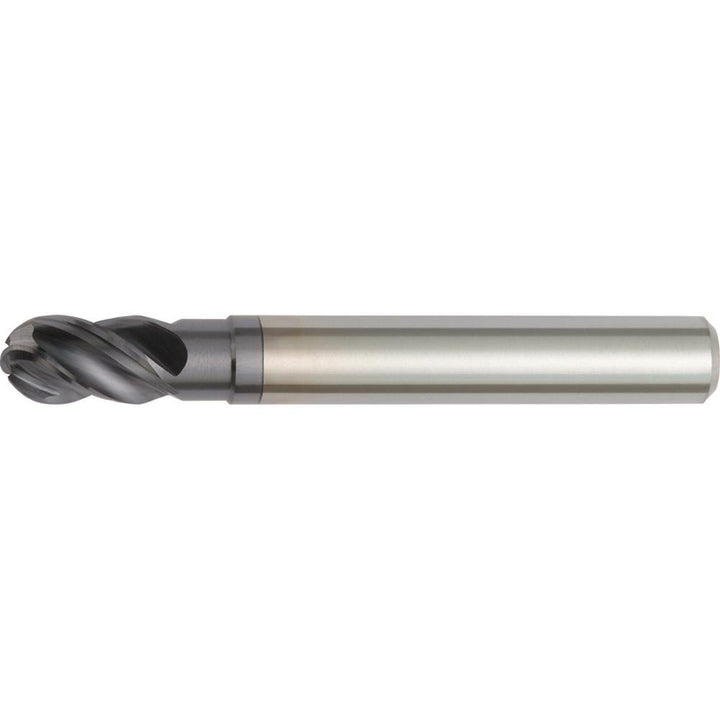

4-Flute Solid Carbide Ball End Mill, TiAlN - Widia 2605591

Widia

4-Flute Solid Carbide Ball End Mill, TiAlN - Widia 2605591

MFR# 2605591Cat# 47N008003LTSeries 47N0

$77.63List $99.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Widia 2605591 is a 4-flute Solid Carbide (TiAlN-LT) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series 47N0.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Helix styleMedium
Length of cut (mm)12.00
Length typeExtended
Manufacturers catalog number47N008003LT
Material gradeTiAlN-LT
Material removal typeRoughing & Finishing
Mill diameter (mm)8.00
Neck length (mm)8.00
Nose radius4.0000
Number of flutes4
Overall length (mm)63.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length (mm)20.00
Shank diameter0.3150
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexYes
