Widia

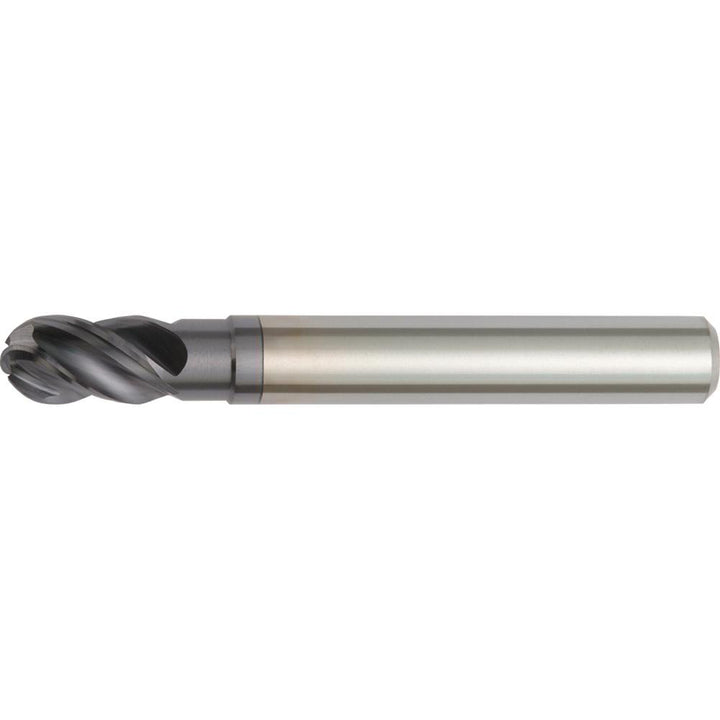

4-Flute Solid Carbide Ball End Mill, TiAlN - Widia 2605592
MFR# 2605592Cat# 47N010004LTSeries 47N0
$156.38List $197.07
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 2605592 is a 4-flute Solid Carbide (TiAlN-LT) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series 47N0.
Specifications
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Helix styleMedium
Length of cut (mm)14.00
Length typeExtended
Manufacturers catalog number47N010004LT
Material gradeTiAlN-LT
Material removal typeRoughing & Finishing
Mill diameter (mm)10.00
Neck length (mm)11.00
Nose radius5.0000
Number of flutes4
Overall length (mm)72.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length (mm)25.00
Shank diameter0.3937
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexYes
