Widia
1/4-18 NPT High-Speed Steel Tap, TiN - Widia 2622810
MFR# 2622810Series 5320
$50.28List $64.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-18
CoatingTiN
Description

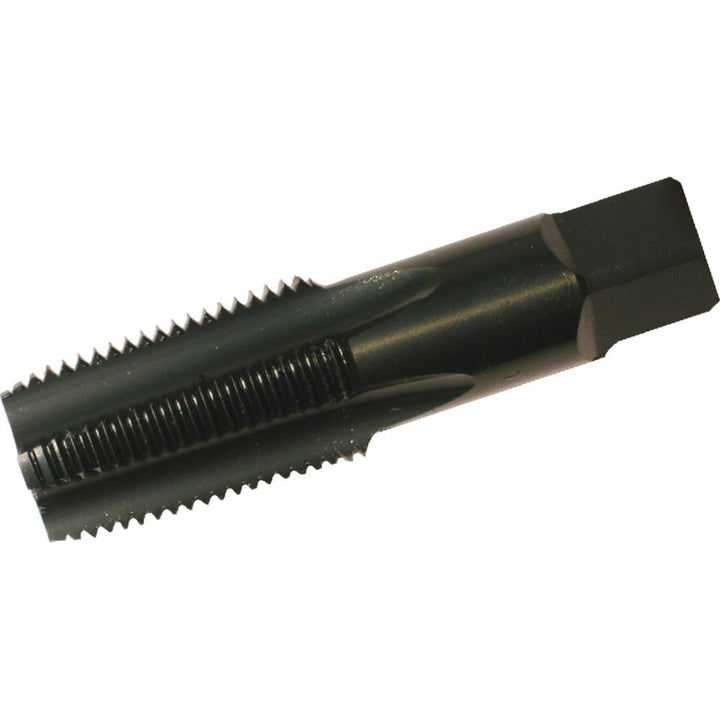

The Widia 2622810 is a 1/4-18 NPT High-Speed Steel tap with a TiN finish. 4 flutes.
Specifications
ApplicationMetal
ChamferPlug
Coating finishTiN
MaterialHigh-Speed Steel
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Number of flutes4
Overall length in2-7/16
Shank diameter0.5625
Square length0.4375
Square size0.4210
Threads per inch18
Thread depth1.0625
Thread length1.0625
Thread pitch0.0556
Thread size in1/4-18
Thread standardNPT
