Widia

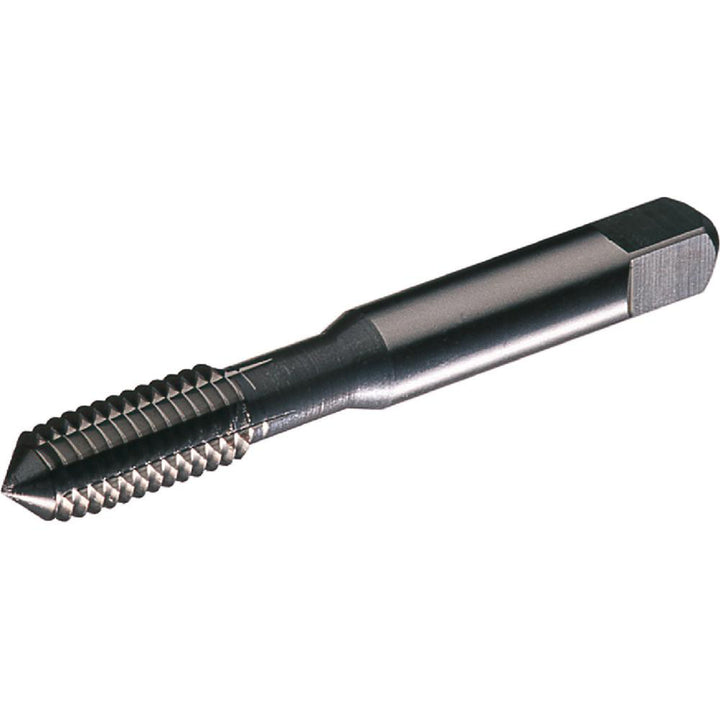

M8x1.25 Metric High-Speed Steel Tap, TiN - Widia 2746215
MFR# 2746215Series 2512
$21.33List $26.89
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Widia 2746215 is a Metric High-Speed Steel tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6H
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length2.7165
Shank diameter0.3180
Square size0.2380
Tapping depth1.1260
Thread directionRight Hand
Thread length0.6900
Thread limitD9
Thread size (mm)M8x1.25
Thread standardMetric
