Widia

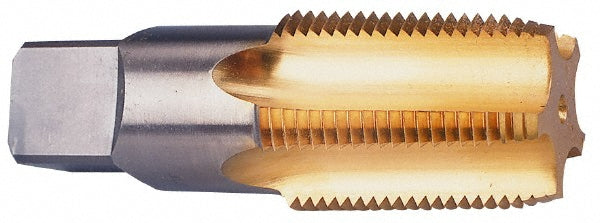

1/8-27 NPT High-Speed Steel Straight Flute Tap, TiN - Widia 2746397
MFR# 2746397Series 2320; 5320
$38.19List $48.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/8-27
CoatingTiN
Description
The Widia 2746397 is a 1/8-27 NPT High-Speed Steel Straight Flute tap with a TiN finish. 4 flutes.
Specifications
ApplicationTapping
ChamferPlug
Coating finishTiN
HookRegular
MaterialHigh-Speed Steel
Material applicationSteel
Number of flutes4
Overall length2.1300
Projection1.7550
Shank diameter0.4375
Square length0.3750
Square size0.3280
Tap typeStraight Flute
Threads per inch27
Thread depth0.7500
Thread length0.7500
Thread pitch0.0370
Thread profileStandard
Thread size in1/8-27
Thread standardNPT
