Widia

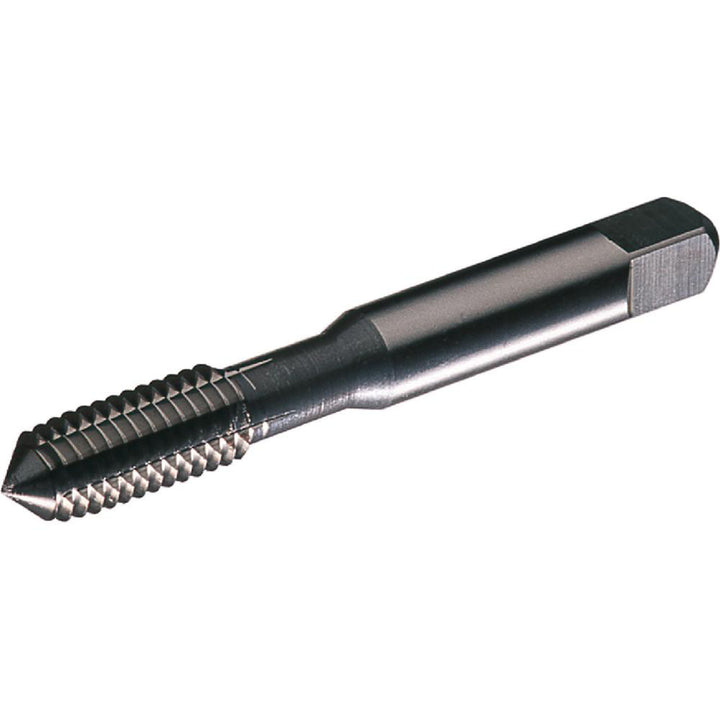

M6x1 Metric High-Speed Steel Tap - Widia 2747513
MFR# 2747513Series 5512
$19.63List $25.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Widia 2747513 is a Metric High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6H
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length2.5000
Shank diameter0.2550
Square size0.1910
Tapping depth1.0000
Thread directionRight Hand
Thread length in5/8
Thread limitD8
Thread size (mm)M6x1
Thread standardMetric
Trade nameTRU-LEDE
