Widia

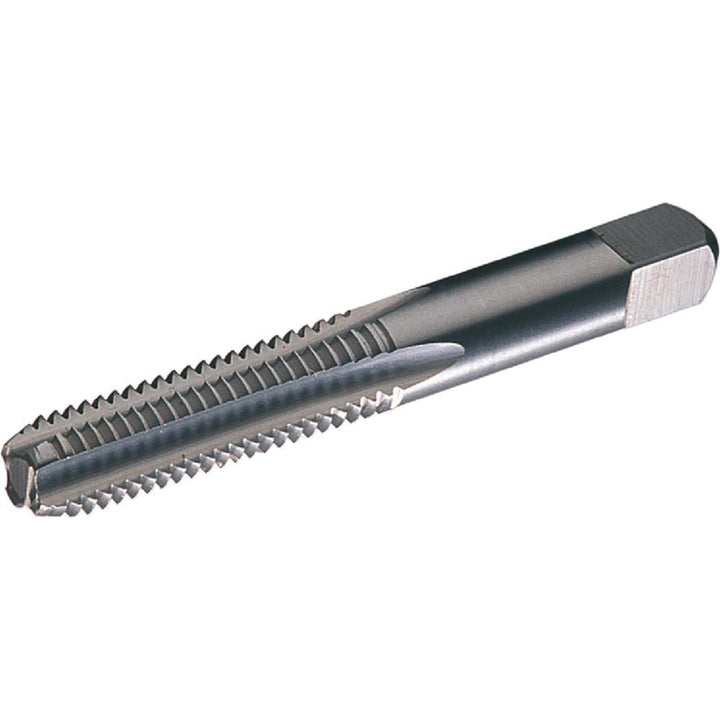

3/8-24 UNF High-Speed Steel Machine Tap - Widia 2749599
MFR# 2749599Series 5303
$15.24List $19.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-24
Description
The Widia 2749599 is a 3/8-24 UNF High-Speed Steel Machine tap. 4 flutes.
Specifications
ApplicationMetal
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Number of flutes4
Overall length2.9375
Shank diameter0.3810
Shank length1.6875
Square length (mm)11.11
Square size0.2860
Tap typeMachine
Threads per inch24
Thread depth1.2500
Thread directionLeft Hand
Thread length1.2500
Thread limitH3
Thread pitch0.0417
Thread size in3/8-24
Thread standardUNF
