Widia

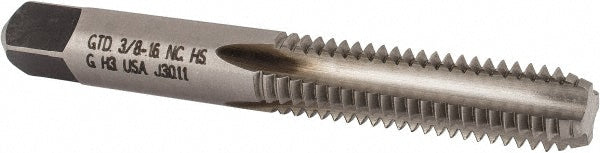

3/8-16 UNC High Speed Steel Standard Tap - Widia 2749647
MFR# 2749647Series 5303; 2303
$11.89List $15.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-16
Description
The Widia 2749647 is a 3/8-16 UNC High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationCast Iron; Non-Ferrous Metals
Number of flutes4
Overall length2.9370
OversizeNo
Shank diameter0.3810
Shank length1.6874
Square length0.4375
Square size0.2860
Tapping depth1.2500
Tap typeStandard
Threads per inch16
Thread depth1.2500
Thread directionRight Hand
Thread length1.2500
Thread limitH3
Thread pitch0.0625
Thread size in3/8-16
Thread standardUNC
