Widia

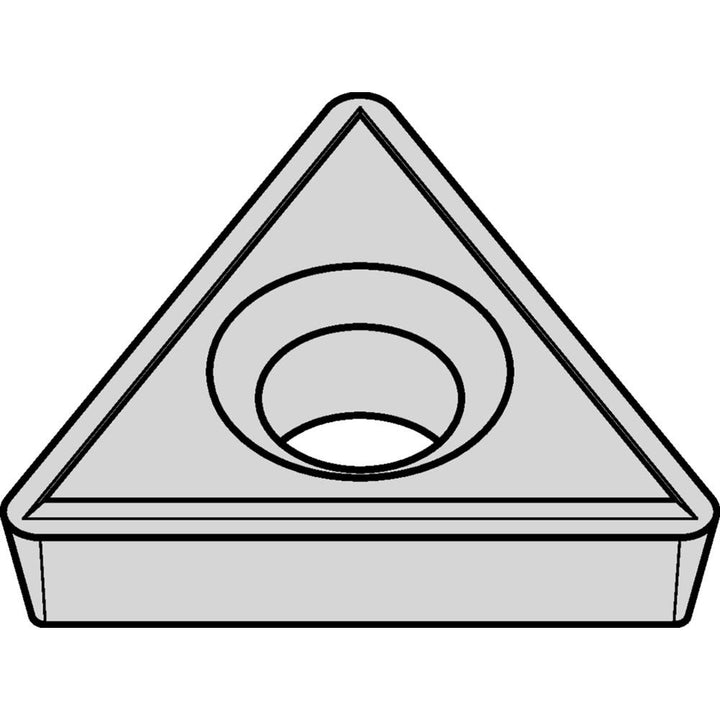

TPHH321 Carbide Insert, Grade CG5, TiN - Widia 2821070
MFR# 2821070ISO/ANSI# TPHH321Series TPHH-LF
$26.05List $32.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeCG5
MaterialCarbide
CoatingTiN
Description
The Widia 2821070 is a TPHH321 carbide indexable insert, grade CG5, TiN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium.
Specifications
Chip breakerLF
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1310
Included angle60degree
Industry standard numberTPHH321
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6500
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTPHH
Insert thickness in1/8
Iso codeTPHH321
Lead angle60
Length range0.6500 - 0.7000
Manufacturers catalog number2821070
Manufacturer gradeCG5
Material gradeSubmicron
Maximum depth of cut0.2167
Multi use applicationTurning
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeH
Width in3/8in
Wiper edgeNo
