Widia

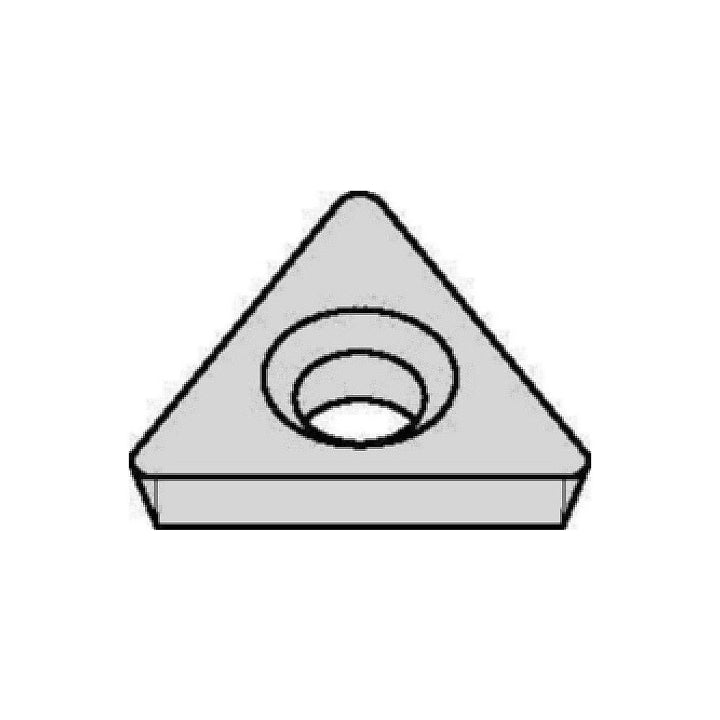

TPHB160304 Carbide Insert, Grade CG5, TiN - Widia 2821392
MFR# 2821392ISO/ANSI# TPHB160304Cat# TPHB160304Series TPHB
$16.95List $21.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeCG5
MaterialCarbide
CoatingTiN
Description
The Widia 2821392 is a TPHB160304 carbide indexable insert, grade CG5, TiN coated. Suited for universal.
Specifications
Ansi codeTPHB321
ChipbreakerYes
Coating finishTiN
Coating processPVD
Corner radius0.0150
Cutting directionNeutral
Hole diameter0.1300
Included angle60.00
Inscribed circle0.3750
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTPHB
Iso codeTPHB160304
Lead angle60
Length0.6496
Manufacturers catalog numberTPHB160304
Manufacturer gradeCG5
Material gradeMicrograin
Maximum depth of cut0.4287
Number of cutting edges3
Primary workpiece materialUniversal
RakePositive
Relief angle11.000
Secondary workpiece materialCast Iron
ShapeTriangle
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Thickness in1/8
Width0.6496
