Widia

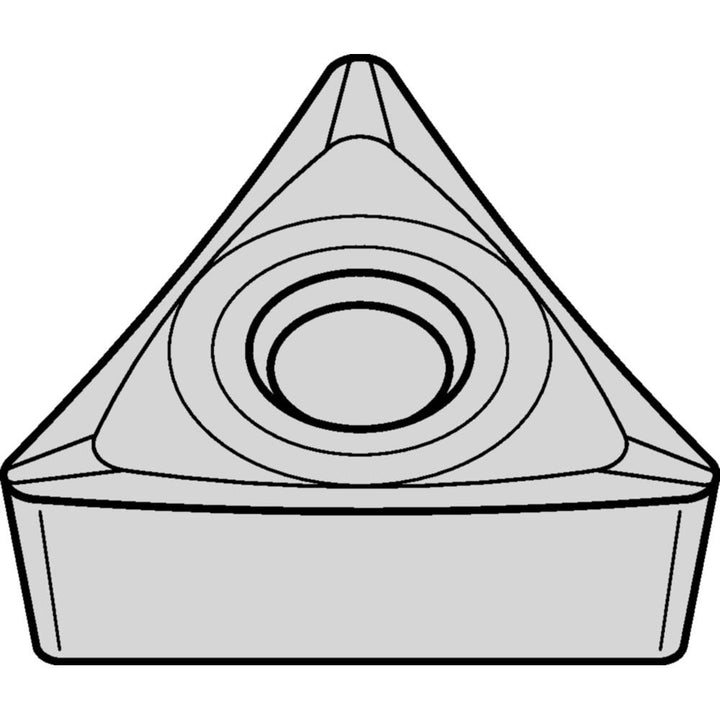

TPGT110204HP Carbide Insert, Grade CG5, TiN - Widia 2823592
MFR# 2823592ISO/ANSI# TPGT2151HPSeries TPGT-HP
$16.76List $21.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCG5
MaterialCarbide
CoatingTiN
Description
The Widia 2823592 is a TPGT110204HP carbide indexable insert, grade CG5, TiN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium.
Specifications
Chip breakerHP
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1140
Included angle60
Industry standard numberTPGT2151HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code2151
Insert styleTPGT
Insert thickness in3/32
Iso codeTPGT110204HP
Length range0.4000 - 0.5000
Manufacturers catalog number2823592
Manufacturer gradeCG5
Material gradeSubmicron
Maximum depth of cut0.1444
Multi use applicationTurning
Multi use toolNo
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
