Widia

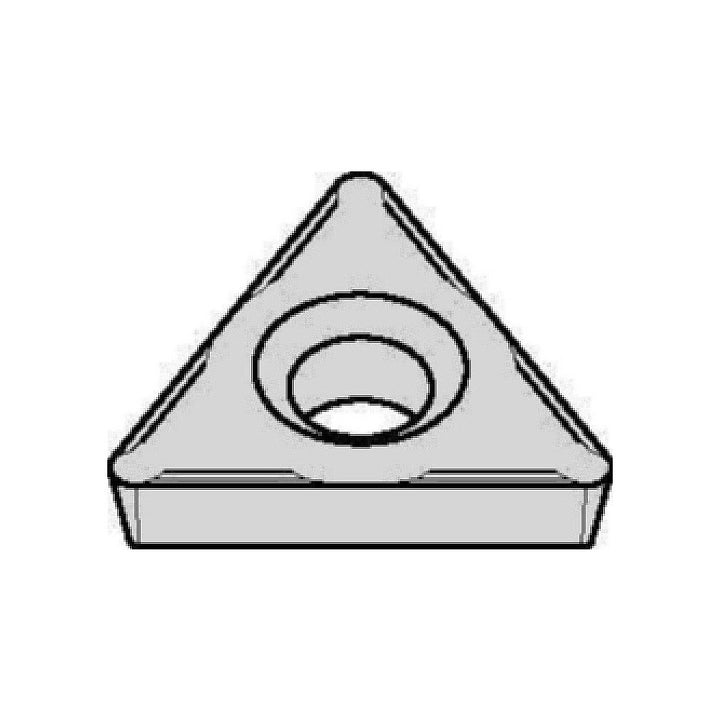

TPHH110202 Carbide Insert, Grade CG5, TiN - Widia 2823914
MFR# 2823914ISO/ANSI# TPHH110202Cat# TPHH110202Series TPHH
$19.06List $24.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeCG5
MaterialCarbide
CoatingTiN
Description
The Widia 2823914 is a TPHH110202 carbide indexable insert, grade CG5, TiN coated. Suited for universal.
Specifications
Ansi codeTPHH21505
ChipbreakerYes
Coating finishTiN
Coating processPVD
Corner radius0.0070
Cutting directionNeutral
Hole diameter0.1300
Included angle60.00
Inscribed circle0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code21505
Insert styleTPHH
Iso codeTPHH110202
Lead angle60
Length0.4330
Manufacturers catalog numberTPHH110202
Manufacturer gradeCG5
Material gradeMicrograin
Maximum depth of cut0.2858
Number of cutting edges3
Primary workpiece materialUniversal
RakePositive
Relief angle11.000
Secondary workpiece materialCast Iron
ShapeTriangle
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Thickness in3/32
Width0.4330
