Widia

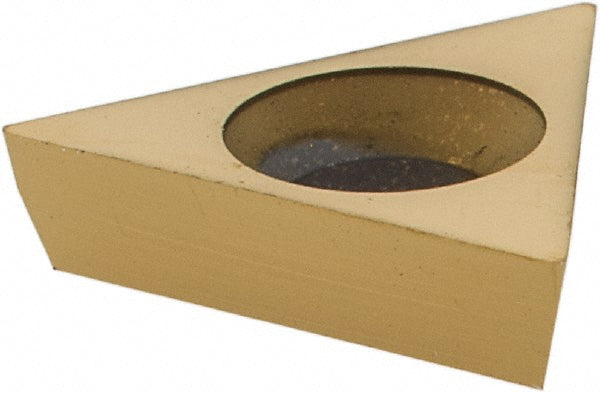

TPHB110202 Carbide Insert, Grade CG5, TiN - Widia 2824200
MFR# 2824200ISO/ANSI# TPHB110202Cat# TPHB110202Series TPHB
$17.35List $22.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeCG5
MaterialCarbide
CoatingTiN
Description
The Widia 2824200 is a TPHB110202 carbide indexable insert, grade CG5, TiN coated.
Specifications
Ansi codeTPHB21505
ChipbreakerYes
Coating finishTiN
Coating processPVD
Corner radius0.0070
Cutting directionNeutral
Hole diameter0.1300
Included angle60.00
Inscribed circle0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code21505
Insert styleTPHB
Iso codeTPHB110202
Lead angle60
Length0.4330
Manufacturers catalog numberTPHB110202
Manufacturer gradeCG5
Material gradeMicrograin
Maximum depth of cut0.2858
Number of cutting edges3
RakePositive
Relief angle11.000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
ShapeTriangle
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Thickness in3/32
Width0.4330
