Widia

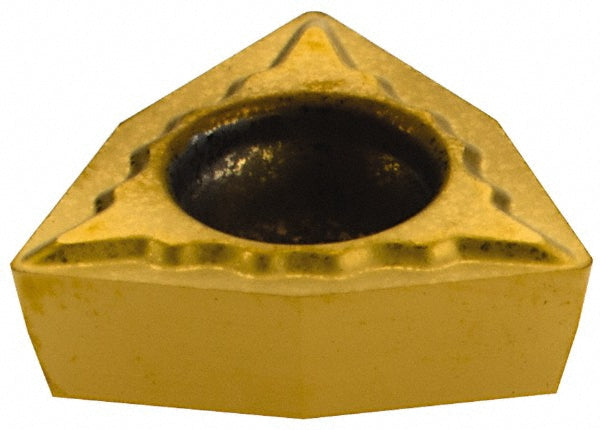

WPGT040202UF Carbide Insert, Grade CG5, TiN - Widia 2824331
MFR# 2824331ISO/ANSI# WPGT040202UFCat# WPGT040202UFSeries WPHT
$13.94List $17.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeCG5
MaterialCarbide
CoatingTiN
Description
The Widia 2824331 is a WPGT040202UF carbide indexable insert, grade CG5, TiN coated.
Specifications
Ansi codeWPGT21505UF
ChipbreakerUF
Coating finishTiN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Hole diameter0.1100
Included angle80.00
Inscribed circle0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code21505
Insert styleWPHT
Iso codeWPGT040202UF
Lead angle80
Length0.1710
Manufacturers catalog numberWPGT040202UF
Manufacturer gradeCG5
Material gradeMicrograin
Maximum depth of cut0.1129
Number of cutting edges3
RakePositive
Relief angle11.000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
ShapeTrigon
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Thickness in3/32
Width0.1710
