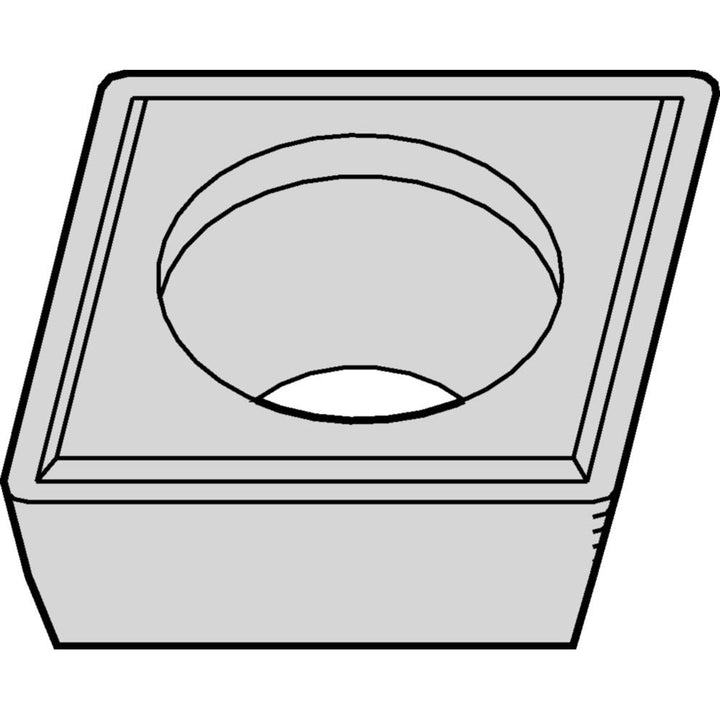

CPHH06T104 Carbide Insert, Grade CG5, TiN - Widia 2824441

Widia

CPHH06T104 Carbide Insert, Grade CG5, TiN - Widia 2824441

MFR# 2824441ISO/ANSI# CPHH2121Series CPHH

$13.22List $16.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeRhombic 80
GradeCG5
MaterialCarbide
CoatingTiN

Description

The Widia 2824441 is a CPHH06T104 carbide indexable insert, grade CG5, TiN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium.

Specifications

Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius0.0150
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCPHH2121
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeRhombic 80
Insert size code2121
Insert styleCPHH
Insert thickness0.0750
Iso codeCPHH06T104
Length range0.0000 - 0.3000
Manufacturers catalog number2824441
Manufacturer gradeCG5
Material gradeSubmicron
Maximum depth of cut0.0846
Multi use applicationTurning
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle11
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeH
Width in1/4in
Wiper edgeNo
