Widia

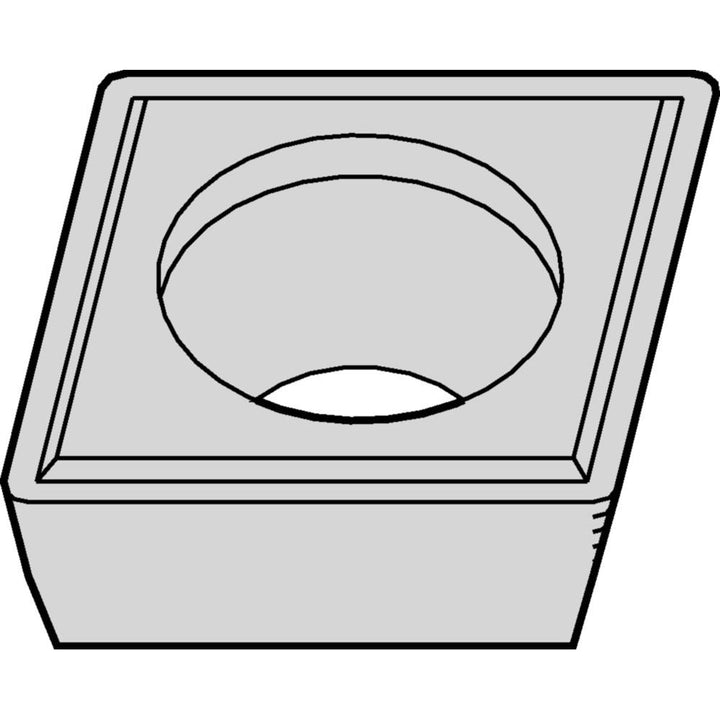

CPHH06T102 Carbide Insert, Grade CG6, TiC - Widia 2824454
MFR# 2824454ISO/ANSI# CPHH21205Series CPHH
$10.88List $13.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRhombic 80
GradeCG6
MaterialCarbide
CoatingTiC
Description
The Widia 2824454 is a CPHH06T102 carbide indexable insert, grade CG6, TiC coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius0.0070
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCPHH21205
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeRhombic 80
Insert size code21205
Insert styleCPHH
Insert thickness0.0750
Iso codeCPHH06T102
Length range0.0000 - 0.3000
Manufacturers catalog number2824454
Manufacturer gradeCG6
Material gradeFine Grain
Maximum depth of cut0.0847
Multi use applicationTurning
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeH
Width in1/4in
Wiper edgeNo
