Widia

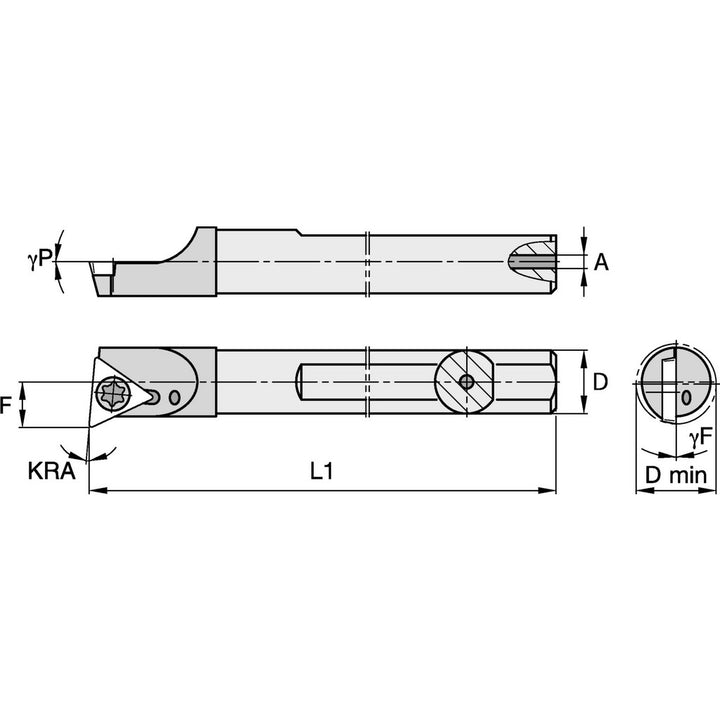

Indexable Boring - Widia 2825304
MFR# 2825304Cat# QCBI37560RSeries QCBI
$398.99List $483.22
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Widia 2825304 indexable boring. Suited for universal. Series QCBI.
Specifications
Back of bar to cutting edge0.4155
Center to cutting edge0.2280
Compatible insert shapeTriangle
Compatible insert size codeTP..21505
Compatible insert thickness0.0938
Coolant hole diameter0.1250
Coolant throughYes
Cutting tool applicationBoring
Hand of holderRight Hand
Insert holding methodScrew
Insert includedNo
Insert inscribed circle in1/4
Insert thickness in3/32
Lead angle0
Manufacturers catalog numberQCBI37560R
Maximum bore depth2.6250
Minimum bore diameter0.4380
Multi use toolYes
Number of inserts used on toolholder1
Overall length in6
Primary workpiece materialUniversal
Radial rake5
RakePositive
Rake angle0.00
Shank diameter in3/8
Toolholder styleQCBI
Tool materialSolid Carbide
