Widia

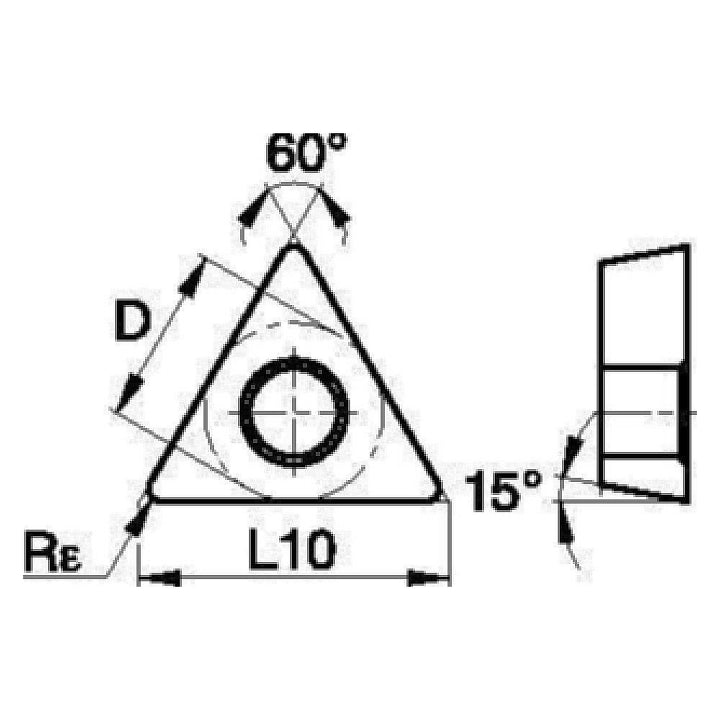

TDHH07S102 Carbide Insert, Grade CG5, TiN - Widia 2828398
MFR# 2828398ISO/ANSI# TDHH07S102Cat# TDHH07S102Series TDHH
$19.21List $24.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeCG5
MaterialCarbide
CoatingTiN
Description
The Widia 2828398 is a TDHH07S102 carbide indexable insert, grade CG5, TiN coated. Suited for universal.
Specifications
Ansi codeTDHH130805
ChipbreakerYes
Coating finishTiN
Coating processPVD
Corner radius0.0070
Cutting directionNeutral
Hole diameter0.0950
Included angle60.00
Inscribed circle0.1600
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code130805
Insert styleTDAT
Iso codeTDHH07S102
Lead angle60
Length0.2770
Manufacturers catalog numberTDHH07S102
Manufacturer gradeCG5
Material gradeMicrograin
Maximum depth of cut0.1828
Number of cutting edges3
Primary workpiece materialUniversal
RakePositive
Relief angle15.000
Secondary workpiece materialCast Iron
ShapeTriangle
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Thickness in3/64
Width0.2770
