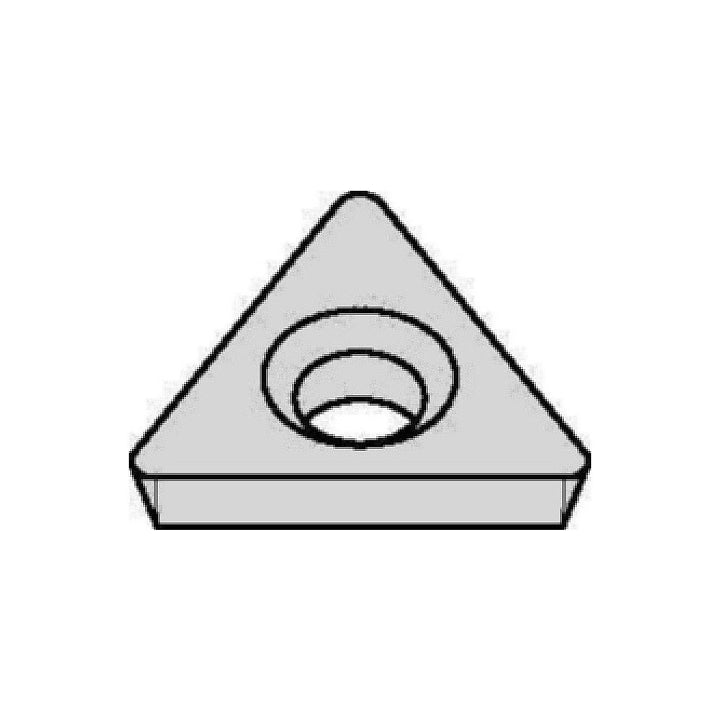

TDHB07S104 Carbide Insert, Grade CG6, TiCN/TiN - Widia 2828702

Widia

TDHB07S104 Carbide Insert, Grade CG6, TiCN/TiN - Widia 2828702

MFR# 2828702ISO/ANSI# TDHB07S104Cat# TDHB07S104Series TDHB

$16.25List $20.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeCG6
MaterialCarbide
CoatingTiCN/TiN

Description

The Widia 2828702 is a TDHB07S104 carbide indexable insert, grade CG6, TiCN/TiN coated. Suited for steel.

Specifications

Ansi codeTDHB13081
ChipbreakerNone
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0150
Cutting directionNeutral
Hole diameter0.0950
Included angle60.00
Inscribed circle0.1600
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code13081
Insert styleTDAB
Iso codeTDHB07S104
Lead angle60
Length0.2770
Manufacturers catalog numberTDHB07S104
Manufacturer gradeCG6
Material gradeC7
Maximum depth of cut0.1828
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle15.000
Secondary workpiece materialStainless Steel
ShapeTriangle
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Thickness in3/64
Width0.2770
