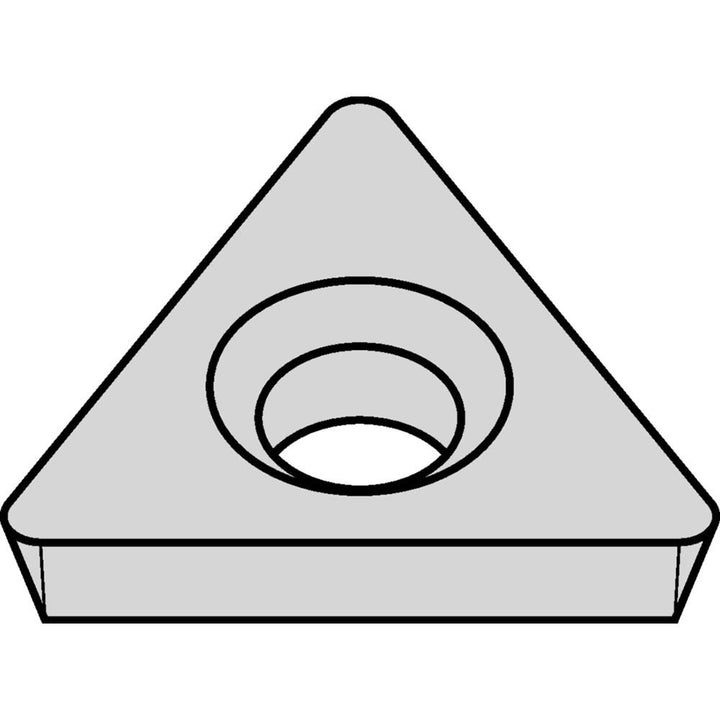

TDHB07S102 Carbide Insert, Grade CG5, TiN - Widia 2828755

Widia

TDHB07S102 Carbide Insert, Grade CG5, TiN - Widia 2828755

MFR# 2828755ISO/ANSI# TDHB07S102Series TDHB

$17.35List $22.24 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeCG5
MaterialCarbide
CoatingTiN

Description

The Widia 2828755 is a TDHB07S102 carbide indexable insert, grade CG5, TiN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium.

Specifications

ChipbreakerFlat Top
Coating finishTiN
Coating processPVD
Corner radius0.0070
Hole diameter0.0950
Included angle60
Inscribed circle0.1600
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code130805
Insert styleTDHB
Iso codeTDHB07S102
Length0.2770
Manufacturers catalog number2828755
Manufacturer gradeCG5
Material gradeSubmicron
Maximum depth of cut0.0923
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle15
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Width0.16
