Widia
Indexable Boring - Widia 2830329
MFR# 2830329Cat# FSBI250500750RSeries FSBI STEPPED
$184.20List $195.69
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Widia 2830329 indexable boring. Suited for universal. Series FSBI STEPPED.

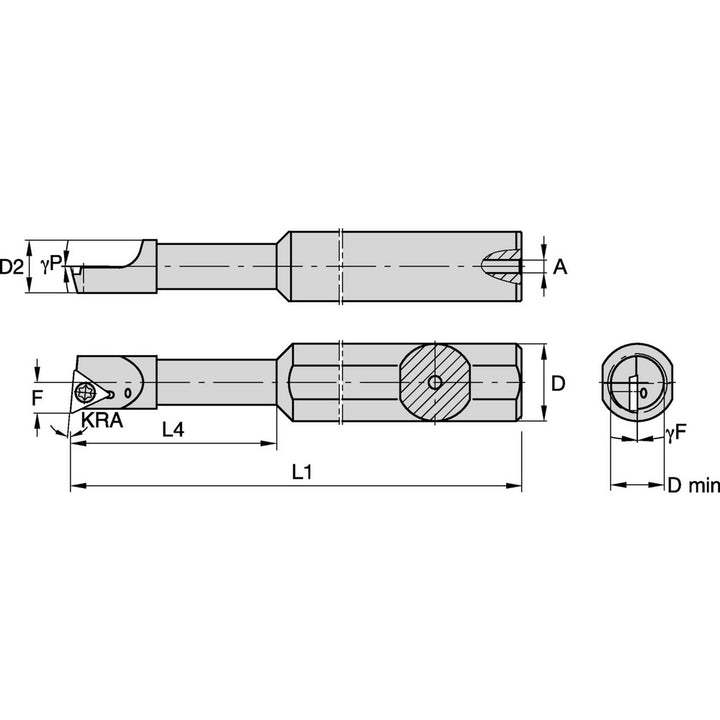

Specifications
Back of bar to cutting edge0.4060
Center to cutting edge0.1560
Compatible insert shapeTriangle
Compatible insert size codeTD..130805
Compatible insert thickness0.0469
Coolant hole diameter0.0400
Coolant throughYes
Cutting tool applicationBoring
Hand of holderRight Hand
Insert holding methodScrew
Insert includedNo
Insert inscribed circle0.1598
Insert thickness in3/64
Lead angle0
Manufacturers catalog numberFSBI250500750R
Maximum bore depth in3/4
Minimum bore diameter0.2960
Multi use toolYes
Neck diameter0.2590
Number of inserts used on toolholder1
Overall length in3
Primary workpiece materialUniversal
Radial rake5
RakePositive
Rake angle0.00
Shank diameter in1/2
Toolholder styleFSBI
Tool materialSteel
