Widia

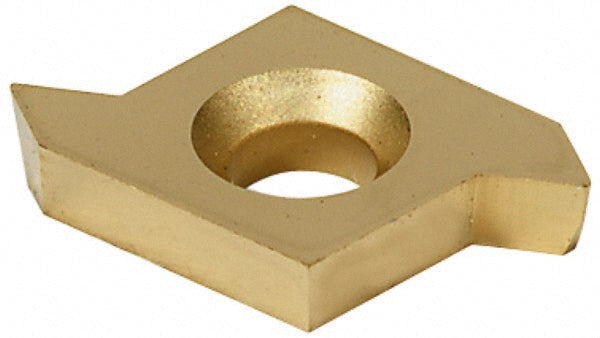

CDT50022R Carbide Insert, Grade CG5 - Widia 2830567
MFR# 2830567ISO/ANSI# CDT50022RSeries CDT
$40.68List $52.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCG5
MaterialCarbide
Description
The Widia 2830567 is a CDT50022R carbide indexable insert, grade CG5.
Specifications
Ansi codeCDT50022R
Coating processPVD
Coolant throughNo
Finish coatingPVD
Included angle60
Inscribed circle0.1560
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size5-002-2
Insert styleCDT
Internal pitch0.5-1.0
Iso codeCDT50022R
Manufacturer gradeCG5
Material gradeSubmicron
Maximum corner radius0.0020
ShapeDiamond
Thickness0.05
Thread standardMetric
Thread typeInternal
Tip to top of insert0.0500
Width of cutting tip0.1562
