Widia

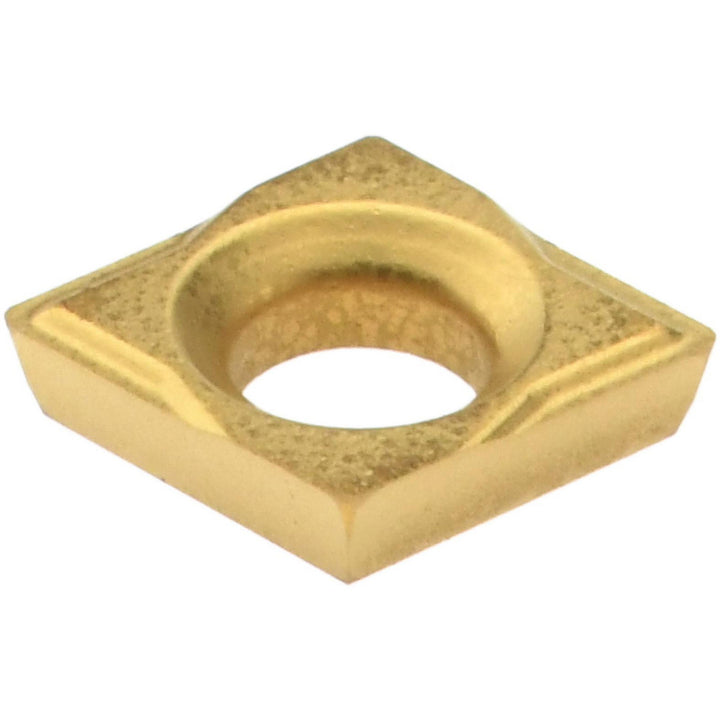

CDHHS4T002 Carbide Insert, Grade CG5, TiN - Widia 2830632
MFR# 2830632ISO/ANSI# CDHHS4T002Cat# CDHHS4T002Series CDHH
$19.92List $25.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeCG5
MaterialCarbide
CoatingTiN
Description
The Widia 2830632 is a CDHHS4T002 carbide indexable insert, grade CG5, TiN coated.
Specifications
Ansi codeCDHH120605
ChipbreakerYes
Coating finishTiN
Coating processPVD
Corner radius0.0070
Cutting directionNeutral
Hole diameter0.0840
Included angle80.00
Inscribed circle0.1563
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code120605
Insert styleCDCT
Iso codeCDHHS4T002
Lead angle80
Length0.1587
Manufacturers catalog numberCDHHS4T002
Manufacturer gradeCG5
Material gradeMicrograin
Maximum depth of cut0.1047
Number of cutting edges2
RakePositive
Relief angle15.000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
ShapeDiamond
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Thickness0.0400
Width0.1587
