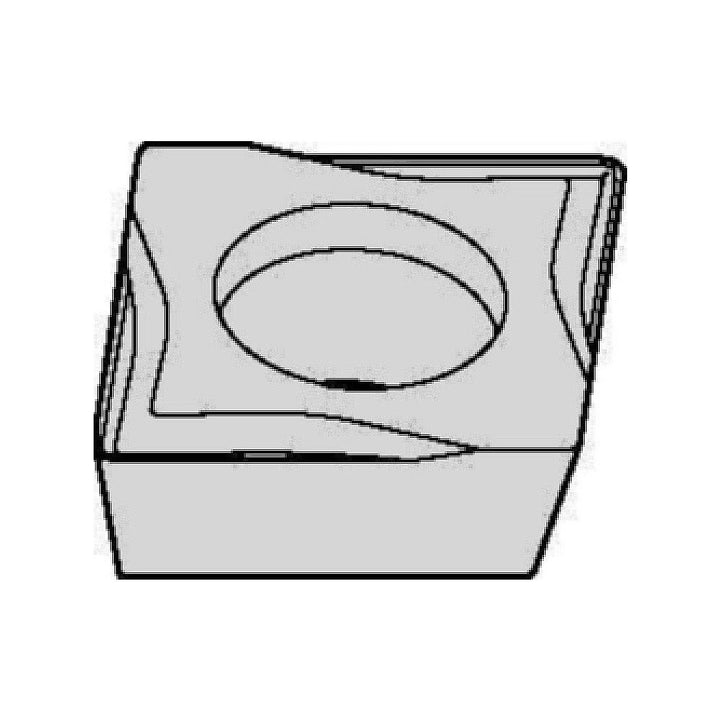

CDHHS4T002L Carbide Insert, Grade CG5, TiN - Widia 2830724

Widia

CDHHS4T002L Carbide Insert, Grade CG5, TiN - Widia 2830724

MFR# 2830724ISO/ANSI# CDHHS4T002LCat# CDHHS4T002LSeries CDHH

$22.07List $28.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
GradeCG5
MaterialCarbide
CoatingTiN

Description

The Widia 2830724 is a CDHHS4T002L carbide indexable insert, grade CG5, TiN coated. Suited for universal.

Specifications

Ansi codeCDHH120605L
ChipbreakerNone
Coating finishTiN
Coating processPVD
Corner radius0.0070
Cutting directionLeft Hand
Hole diameter0.0840
Included angle80.00
Inscribed circle0.1562
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code120605
Insert styleCDCG
Iso codeCDHHS4T002L
Lead angle80
Length0.1590
Manufacturers catalog numberCDHHS4T002L
Manufacturer gradeCG5
Material gradeMicrograin
Maximum depth of cut0.1049
Number of cutting edges2
Primary workpiece materialUniversal
RakePositive
Relief angle15.000
Secondary workpiece materialCast Iron
ShapeDiamond
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Thickness0.0400
Width0.1590
