Widia

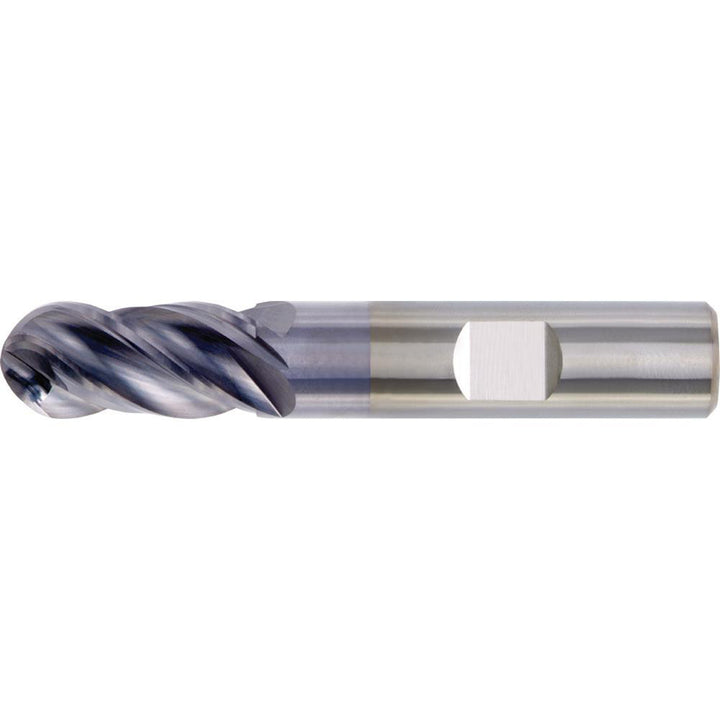

3/8" 4-Flute Solid Carbide Ball End Mill, TiAlN - Widia 2837746

MFR# 2837746Cat# TF4V0010004Series 4V00

$96.84List $124.20 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Widia 2837746 is a 3/8 4-flute Solid Carbide (TiAlN-LT) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 7/8 length of cut, 2-1/2 overall length. Series 4V00.

Specifications

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Helix styleMedium

Length of cut in7/8

Length typeStandard

Manufacturers catalog numberTF4V0010004

Material gradeTiAlN-LT

Material removal typeRoughing & Finishing

Mill diameter in3/8

Neck length0.0000

Nose radius0.1875

Number of flutes4

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in7/8

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
