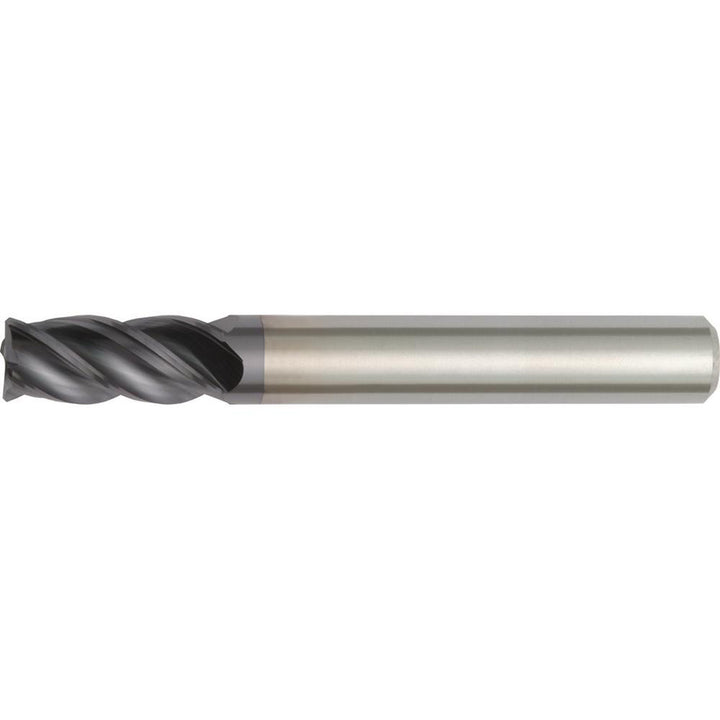

1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 2870193

Widia

1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 2870193

MFR# 2870193Series 4V05

$86.40List $110.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Widia 2870193 is a 1/2 4-flute Solid Carbide (TiAlN-LW) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 5/8 length of cut, 2-1/2 overall length. Series 4V05.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle38
Length of cut in5/8
Length typeRegular
Material gradeTiAlN-LW
Mill diameter in1/2
Neck diameter0.5000
Neck length0.6250
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Reach length in5/8
Secondary workpiece materialHigh-Temp Alloy
Shank diameter in1/2
Shank typeWeldon Flat
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
