Widia

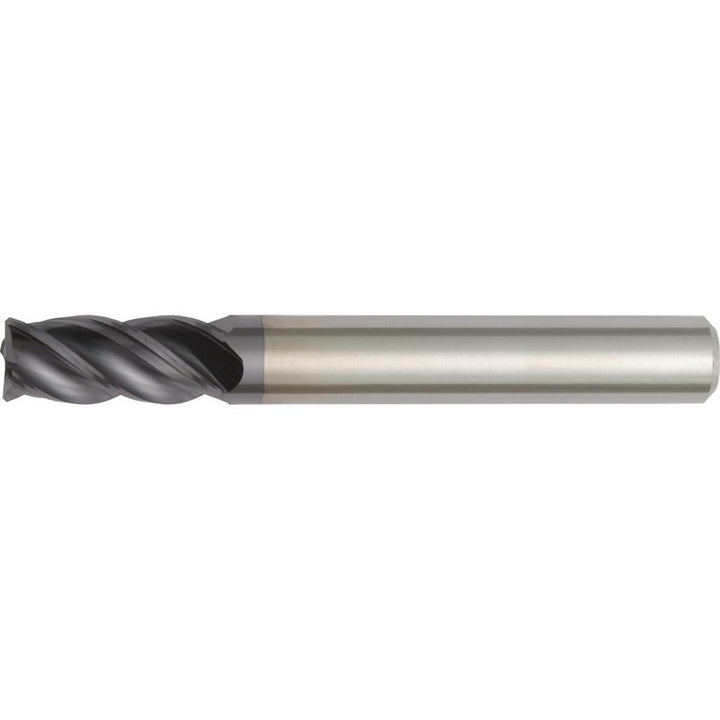

3/16in" 4-Flute Solid Carbide Square End Mill, TiAlN-LT - Widia 2870215

MFR# 2870215Series 4V05

$38.75List $49.70 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16in

Flutes4

MaterialSolid Carbide

CoatingTiAlN-LT

Description

The Widia 2870215 is a 3/16in 4-flute Solid Carbide (TiAlN-LT) square end mill with a TiAlN-LT finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8in length of cut, 2-1/4in overall length. Series 4V05.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN-LT

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in5/8in

Length typeRegular

Material gradeTiAlN-LT

Mill diameter in3/16in

Neck diameter0.1875in

Neck length0.6250

Number of flutes4

Overall length in2-1/4in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in5/8

Secondary workpiece materialHigh Temperature Alloy

Shank diameter in3/16in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
