Widia

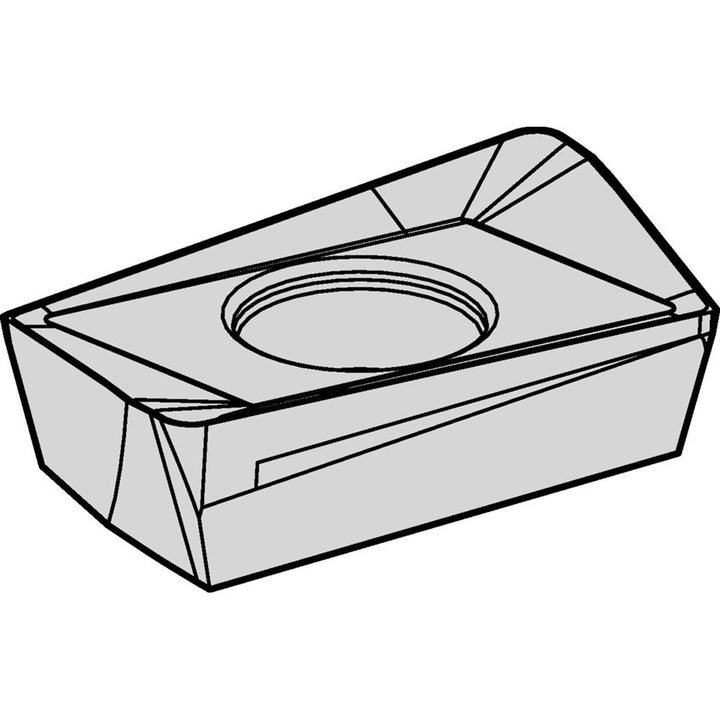

XPHT160408ERGE Solid Carbide Insert, Grade TN6540, TiAlN - Widia 2964170
MFR# 2964170ISO/ANSI# XPHT160408ERGECat# XPHT332ERGESeries M680
$19.61List $25.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeTN6540
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 2964170 is a XPHT160408ERGE solid carbide indexable insert, grade TN6540, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeXPHT332ERGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityM680
Cutting edge styleHoned
Hole diameter0.1748
Included angle degree80
Inscribed circle0.3717
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160408
Insert styleXPHT
Iso codeXPHT160408ERGE
Length0.6704
Length range0.6500 to 0.7000
Manufacturers catalog numberXPHT332ERGE
Manufacturer gradeTN6540
Material applicationSuperalloys & Titanium; Cast Iron; Steel; Stainless Steel
Material gradeP40
Maximum depth of cut0.6169
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle5.00
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3717
