Widia

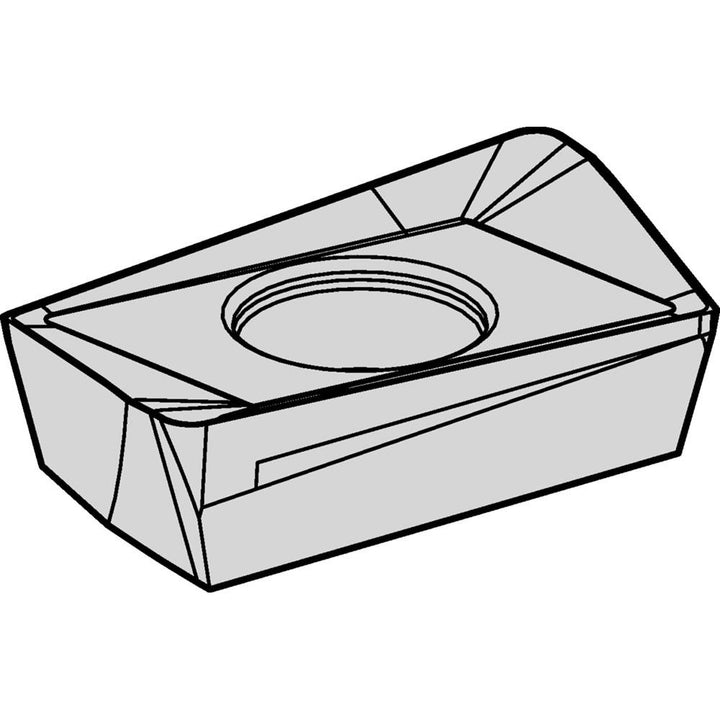

XPHT160408ERGE Solid Carbide Insert, Grade TN6525, TiAlN - Widia 2964176
MFR# 2964176ISO/ANSI# XPHT160408ERGECat# XPHT160408ERGESeries M680
$19.61List $25.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeTN6525
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 2964176 is a XPHT160408ERGE solid carbide indexable insert, grade TN6525, TiAlN coated. Suited for steel.
Specifications
Ansi codeXPHT160408ERGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityM680
Cutting edge styleHoned
Hole diameter0.1748
Included angle degree80
Inscribed circle0.3717
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160408
Insert styleXPHT
Iso codeXPHT160408ERGE
Length0.6704
Length range0.6500 to 0.7000
Manufacturers catalog numberXPHT160408ERGE
Manufacturer gradeTN6525
Material applicationCast Iron; Steel; Stainless Steel
Material gradeP25
Maximum depth of cut0.6169
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle5.00
Secondary workpiece materialStainless Steel; Cast Iron; Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3717
