Widia

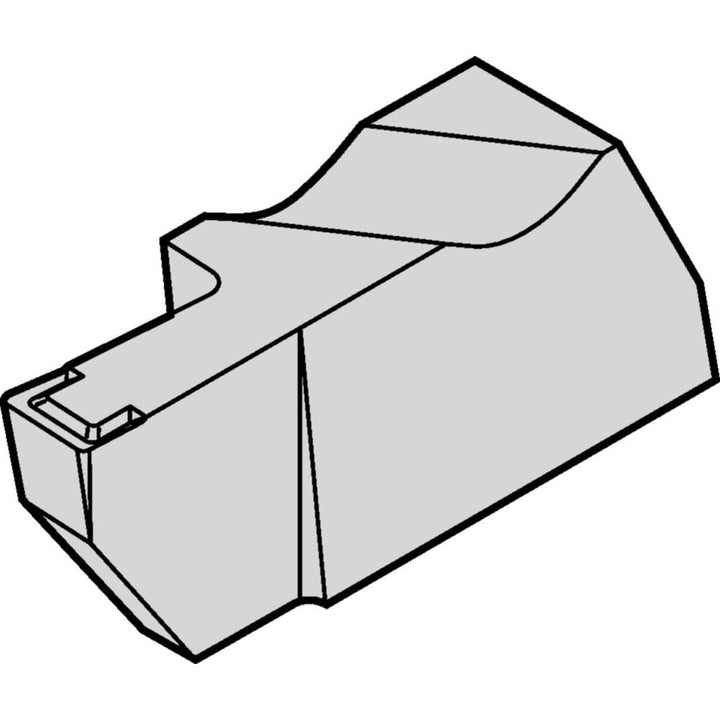

NGD3M300LK Carbide Insert, Grade TN6010, TiAlN - Widia 3606943
MFR# 3606943ISO/ANSI# NGD3M300LKCat# NGD3M300LKSeries NGD-K
$18.66List $23.52
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN
Description
The Widia 3606943 is a NGD3M300LK carbide indexable insert, grade TN6010, TiAlN coated. Suited for stainless steel, cast iron, non-ferrous metal, super-alloys & titanium, steel.
Specifications
Ansi codeNGD3M300LK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in1/4
Cutting width0.1181
For use withGrooving; Turning
Full radiusNo
Groove width (mm)3.00
Hole diameter0.0000
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNGD-K
Iso codeNGD3M300LK
Lead angle0.000
Manufacturers catalog numberNGD3M300LK
Manufacturer gradeTN6010
Maximum corner radius0.0075
Maximum depth of cut in1/4
Maximum groove width (mm)3.00
Minimum groove width (mm)3.00
Minimum insert width (mm)3.00
Multi use toolYes
Number of cutting edges1
Overall length0.9860
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Single or double endSingle
StyleTop Notch Grooving Insert
TypeTop Notch Grooving Insert
