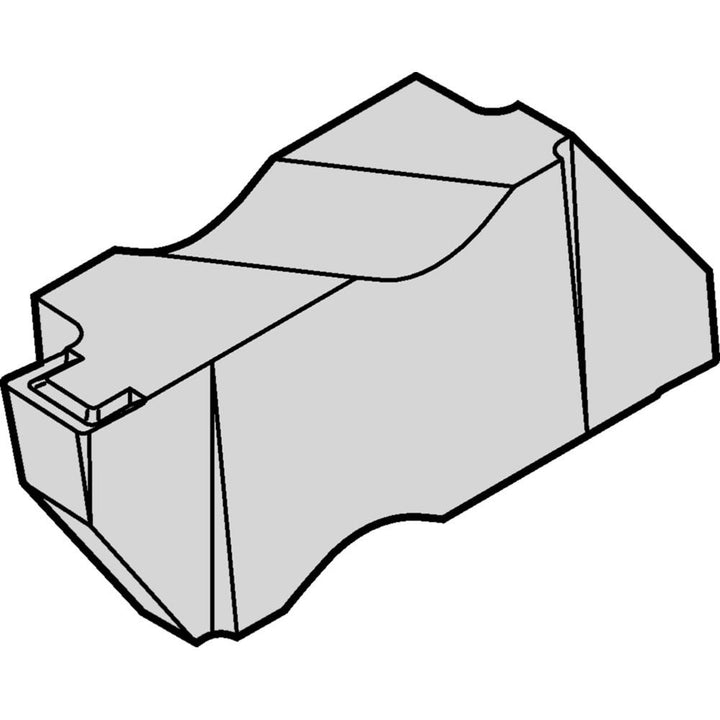

NG3062RK Carbide Insert, Grade TN6010, TiAlN - Widia 3607055

Widia

NG3062RK Carbide Insert, Grade TN6010, TiAlN - Widia 3607055

MFR# 3607055ISO/ANSI# NG3062RKCat# NG3062RKSeries NG-K

$24.71List $31.70 Save 22%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN

Description

The Widia 3607055 is a NG3062RK carbide indexable insert, grade TN6010, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.

Specifications

Ansi codeNG3062RK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in3/32
Cutting width in1/16
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/8
Groove width (mm)1.57
Hole diameter0.0000
Insert handRight Hand
Insert height0.3440
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNG-K
Insert thickness0.3440
Iso codeNG3062RK
Lead angle11.000
Manufacturers catalog numberNG3062RK
Manufacturer gradeTN6010
Maximum corner radius0.0075
Maximum depth of cut in3/32
Maximum groove width (mm)1.57
Minimum corner radius0.0100
Minimum groove width (mm)1.57
Minimum insert width (mm)4.98
Multi use toolYes
Number of cutting edges2
Overall length0.8860
Overall width0.1960
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in11/32
TypeTop Notch Grooving Insert
