Widia

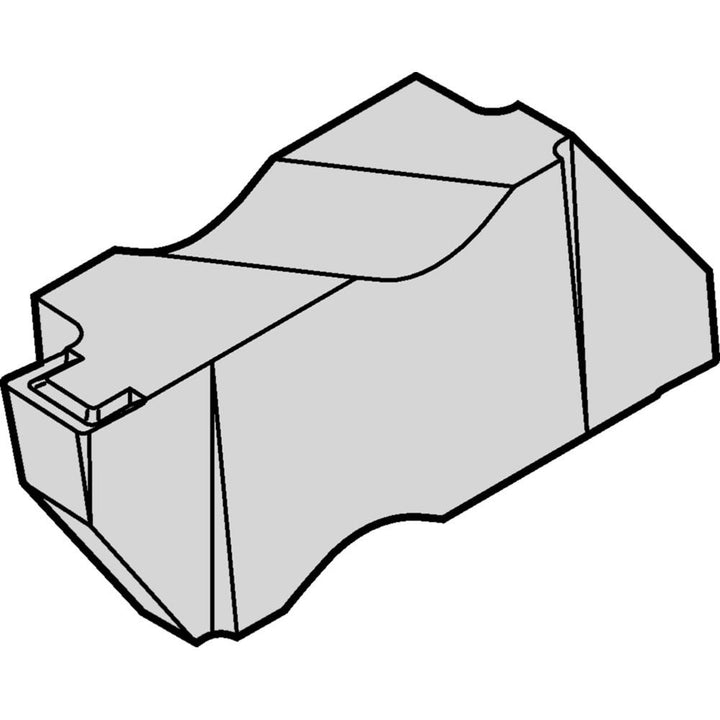

NG3094LK Carbide Insert, Grade TN6010, TiAlN - Widia 3607058
MFR# 3607058ISO/ANSI# NG3094LKCat# NG3094LKSeries NG-K
$28.96List $37.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607058 is a NG3094LK carbide indexable insert, grade TN6010, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.
Specifications
Ansi codeNG3094LK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height0.1500
Cutting width in3/32
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/8
Groove width (mm)2.39
Hole diameter0.0000
Insert handLeft Hand
Insert height0.3440
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNG-K
Insert thickness0.3440
Iso codeNG3094LK
Lead angle11.000
Manufacturers catalog numberNG3094LK
Manufacturer gradeTN6010
Maximum corner radius0.0075
Maximum depth of cut0.1500
Maximum groove width (mm)2.39
Minimum corner radius0.0100
Minimum groove width (mm)2.39
Minimum insert width (mm)4.98
Multi use toolYes
Number of cutting edges2
Overall length0.8860
Overall width0.1960
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in11/32
TypeTop Notch Grooving Insert
