Widia

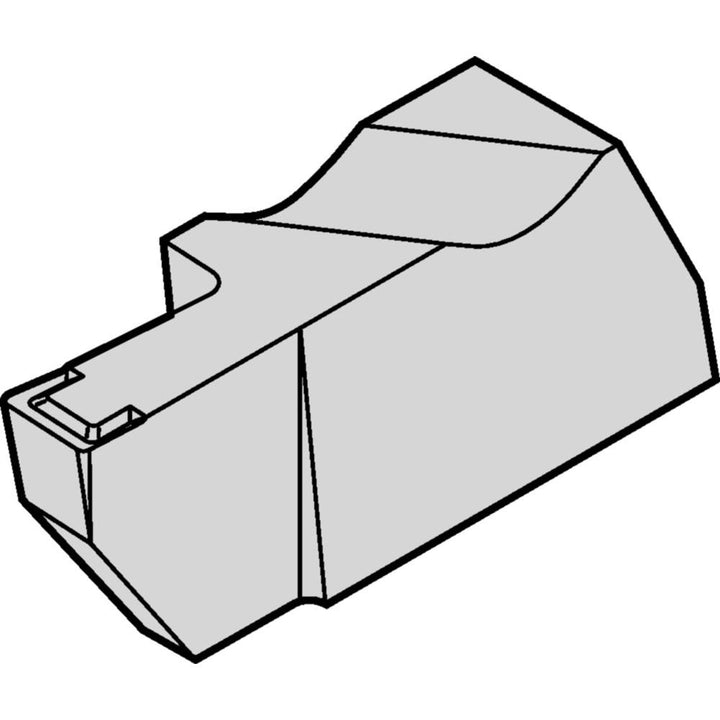

NGD3094RK Carbide Insert, Grade TN6010, TiAlN - Widia 3607083
MFR# 3607083ISO/ANSI# NGD3094RKCat# NGD3094RKSeries NGD-K
$22.39List $28.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607083 is a NGD3094RK carbide indexable insert, grade TN6010, TiAlN coated. Suited for stainless steel, cast iron, non-ferrous metal, super-alloys & titanium, steel.
Specifications
Ansi codeNGD3094RK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in1/4
Cutting width in3/32
For use withGrooving; Turning
Full radiusNo
Groove width (mm)2.39
Hole diameter0.0000
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNGD-K
Iso codeNGD3094RK
Lead angle0.000
Manufacturers catalog numberNGD3094RK
Manufacturer gradeTN6010
Maximum corner radius0.0075
Maximum depth of cut in1/4
Maximum groove width (mm)2.39
Minimum groove width (mm)2.39
Minimum insert width (mm)3.00
Multi use toolYes
Number of cutting edges1
Overall length0.9860
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Single or double endSingle
StyleTop Notch Grooving Insert
TypeTop Notch Grooving Insert
