Widia

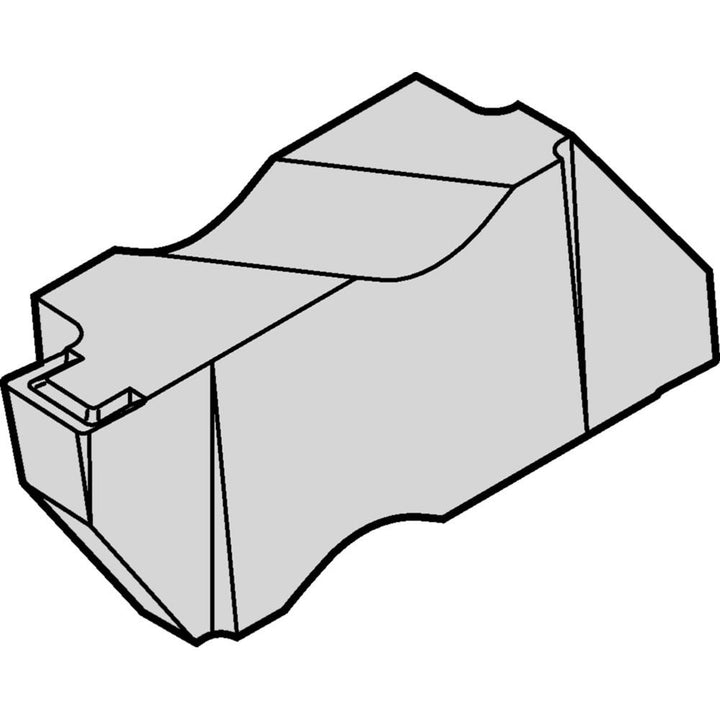

NG2062RK Carbide Insert, Grade TN6010, TiAlN - Widia 3607089
MFR# 3607089ISO/ANSI# NG2062RKCat# NG2062RKSeries NG-K
$33.21List $41.86
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607089 is a NG2062RK carbide indexable insert, grade TN6010, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.
Specifications
Ansi codeNG2062RK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in7/64
Cutting width0.0614
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/16
Groove width (mm)1.56
Hole diameter0.0000
Insert handRight Hand
Insert height0.2190
Insert holding methodClamp
Insert materialCarbide
Insert seat size2
Insert size2
Insert size code2
Insert styleNG-K
Insert thickness0.2190
Iso codeNG2062RK
Lead angle11.000
Manufacturers catalog numberNG2062RK
Manufacturer gradeTN6010
Maximum corner radius0.0075
Maximum depth of cut in7/64
Maximum groove width (mm)1.56
Minimum corner radius0.0100
Minimum groove width (mm)1.56
Minimum insert width (mm)3.81
Multi use toolYes
Number of cutting edges2
Overall length0.5110
Overall width0.1500
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in7/32
TypeTop Notch Grooving Insert
