Widia

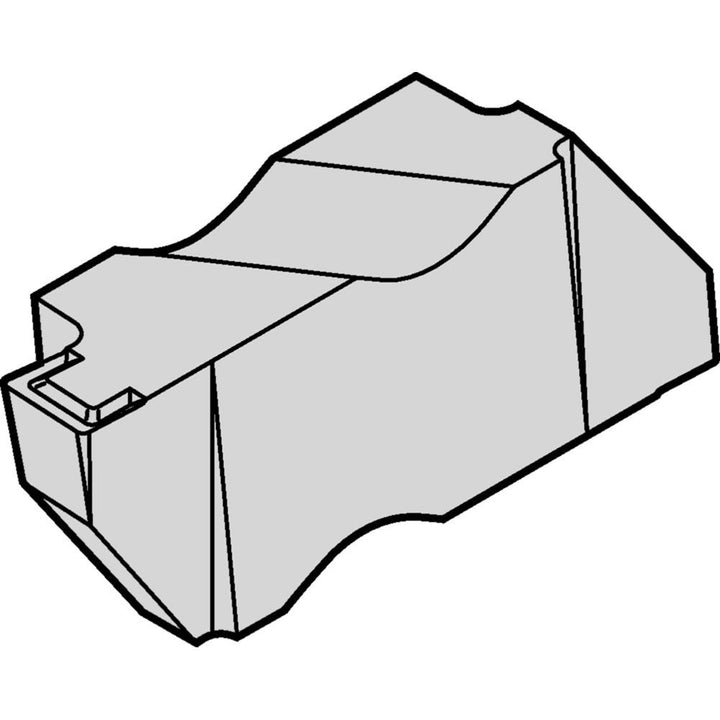

NG3062LK Carbide Insert, Grade TN6010, TiAlN - Widia 3607092
MFR# 3607092ISO/ANSI# NG3062LKCat# NG3062LKSeries NG-K
$35.40List $44.61
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607092 is a NG3062LK carbide indexable insert, grade TN6010, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.
Specifications
Ansi codeNG3062LK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in3/32
Cutting width in1/16
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/8
Groove width (mm)1.58
Hole diameter0.0000
Insert handLeft Hand
Insert height0.3440
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNG-K
Insert thickness0.3440
Iso codeNG3062LK
Lead angle11.000
Manufacturers catalog numberNG3062LK
Manufacturer gradeTN6010
Maximum corner radius0.0075
Maximum depth of cut in3/32
Maximum groove width (mm)1.58
Minimum corner radius0.0100
Minimum groove width (mm)1.58
Minimum insert width (mm)4.98
Multi use toolYes
Number of cutting edges2
Overall length0.8860
Overall width0.1960
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in11/32
TypeTop Notch Grooving Insert
