Widia

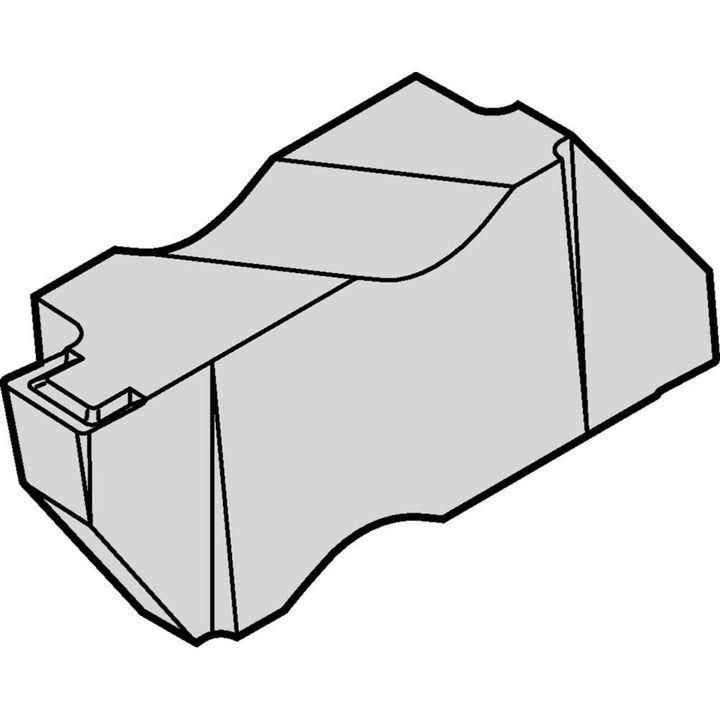

NG3078LK Carbide Insert, Grade TN6010, TiAlN - Widia 3607106
MFR# 3607106ISO/ANSI# NG3078LKCat# NG3078LKSeries NG-K
$24.74List $31.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607106 is a NG3078LK carbide indexable insert, grade TN6010, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.
Specifications
Ansi codeNG3078LK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in3/32
Cutting width in5/64
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/8
Groove width (mm)1.98
Hole diameter0.0000
Insert handLeft Hand
Insert height0.3440
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNG-K
Insert thickness0.3440
Iso codeNG3078LK
Lead angle11.000
Manufacturers catalog numberNG3078LK
Manufacturer gradeTN6010
Maximum corner radius0.0075
Maximum depth of cut in3/32
Maximum groove width (mm)1.98
Minimum corner radius0.0100
Minimum groove width (mm)1.98
Minimum insert width (mm)4.98
Multi use toolYes
Number of cutting edges2
Overall length0.8860
Overall width0.1960
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in11/32
TypeTop Notch Grooving Insert
