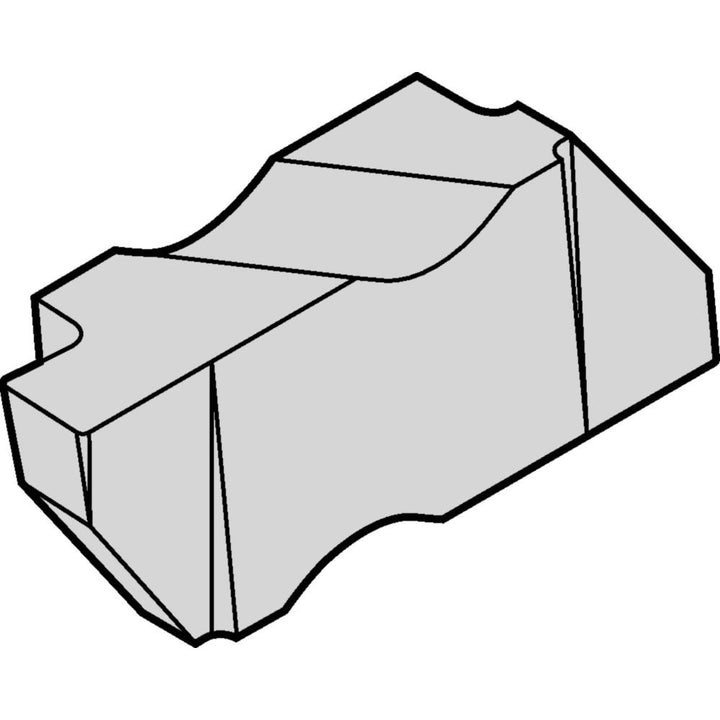

NG2031R Carbide Insert, Grade TN6010, TiAlN - Widia 3607153

Widia

NG2031R Carbide Insert, Grade TN6010, TiAlN - Widia 3607153

MFR# 3607153ISO/ANSI# NG2031RCat# NG2031RSeries NG

$28.04List $35.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN

Description

The Widia 3607153 is a NG2031R carbide indexable insert, grade TN6010, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.

Specifications

Ansi codeNG2031R
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0035
Cutting height0.0500
Cutting width in1/32
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/16
Groove width (mm)0.79
Hole diameter0.0000
Insert handRight Hand
Insert height0.2190
Insert holding methodClamp
Insert materialCarbide
Insert seat size2
Insert size2
Insert size code2
Insert styleNG
Insert thickness0.2190
Iso codeNG2031R
Lead angle11.000
Manufacturers catalog numberNG2031R
Manufacturer gradeTN6010
Maximum corner radius0.0035
Maximum depth of cut0.0500
Maximum groove width (mm)0.79
Minimum corner radius0.0050
Minimum groove width (mm)0.79
Minimum insert width (mm)3.84
Multi use toolYes
Number of cutting edges2
Overall length0.5110
Overall width0.1510
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakeNeutral
Rake angle0.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in7/32
TypeTop Notch Grooving Insert
