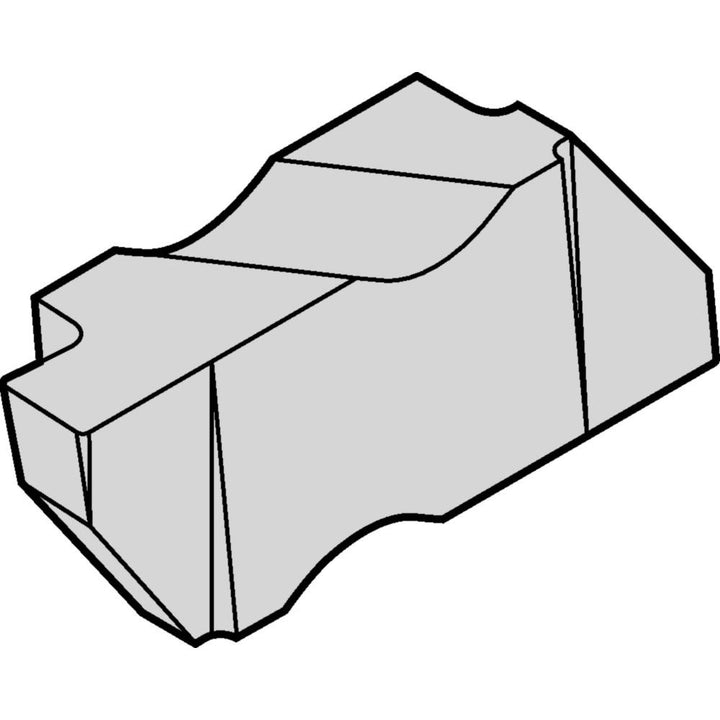

NG3047R Carbide Insert, Grade TN6010, TiAlN - Widia 3607157

Widia

NG3047R Carbide Insert, Grade TN6010, TiAlN - Widia 3607157

MFR# 3607157ISO/ANSI# NG3047RCat# NG3047RSeries NG

$29.45List $37.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN

Description

The Widia 3607157 is a NG3047R carbide indexable insert, grade TN6010, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.

Specifications

Ansi codeNG3047R
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height0.0752
Cutting width in3/64
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/8
Groove width (mm)1.19
Hole diameter0.0000
Insert handRight Hand
Insert height0.3440
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNG
Insert thickness0.3440
Iso codeNG3047R
Lead angle11.000
Manufacturers catalog numberNG3047R
Manufacturer gradeTN6010
Maximum corner radius0.0075
Maximum depth of cut0.0752
Maximum groove width (mm)1.19
Minimum corner radius0.0100
Minimum groove width (mm)1.19
Minimum insert width (mm)4.98
Multi use toolYes
Number of cutting edges2
Overall length0.8860
Overall width0.1960
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakeNeutral
Rake angle0.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in11/32
TypeTop Notch Grooving Insert
