Widia

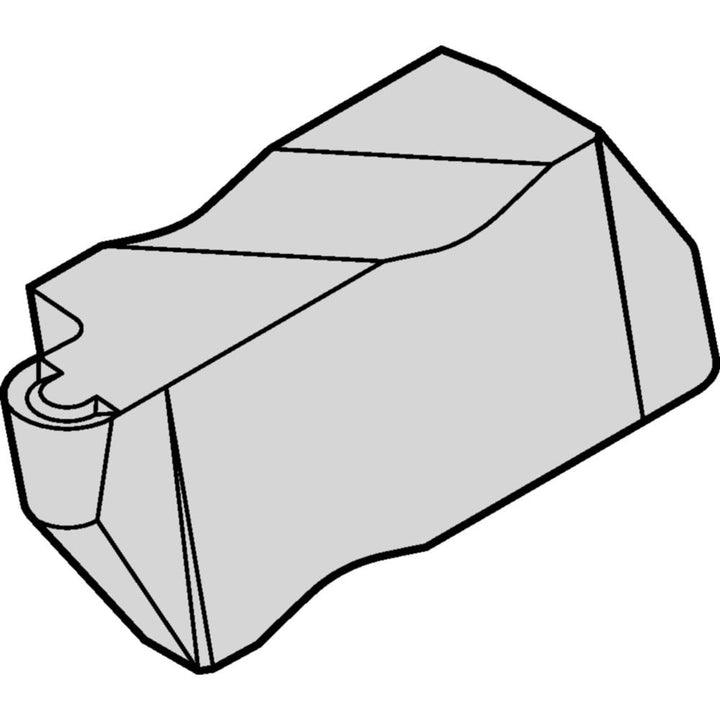

NR3062RK Carbide Insert, Grade TN6025, TiAlN - Widia 3607236
MFR# 3607236ISO/ANSI# NR3062RKCat# NR3062RKSeries NR-K
$37.41List $47.14
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607236 is a NR3062RK carbide indexable insert, grade TN6025, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.
Specifications
Ansi codeNR3062RK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting height0.1500
Cutting width in1/8
For use withGrooving; Turning
Full radiusYes
Gage diameter in3/8
Groove width (mm)3.18
Hole diameter0.0000
Insert handRight Hand
Insert height0.3440
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNR-K
Insert thickness0.3440
Iso codeNR3062RK
Lead angle11.000
Manufacturers catalog numberNR3062RK
Manufacturer gradeTN6025
Maximum corner radius0.0626
Maximum depth of cut0.1500
Maximum groove width (mm)3.18
Minimum groove width (mm)3.18
Minimum insert width (mm)4.98
Multi use toolYes
Number of cutting edges2
Overall length0.8808
Overall width0.1960
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in11/32
TypeTop Notch Grooving Insert
