Widia

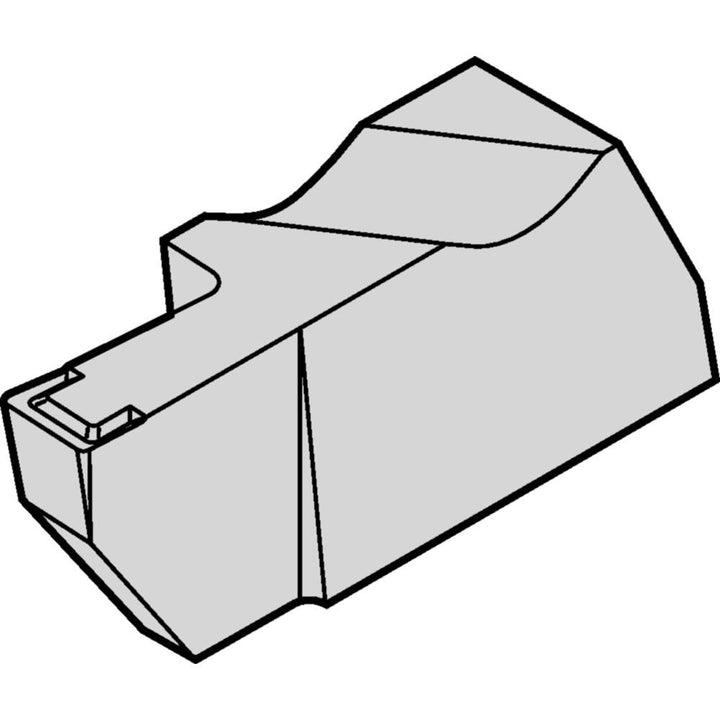

NGD3094LK Carbide Insert, Grade TN6025, TiAlN - Widia 3607240
MFR# 3607240ISO/ANSI# NGD3094LKCat# NGD3094LKSeries NGD-K
$26.43List $33.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607240 is a NGD3094LK carbide indexable insert, grade TN6025, TiAlN coated. Suited for stainless steel, cast iron, non-ferrous metal, super-alloys & titanium, steel.
Specifications
Ansi codeNGD3094LK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in1/4
Cutting width in3/32
For use withGrooving; Turning
Full radiusNo
Groove width (mm)2.39
Hole diameter0.0000
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleNGD-K
Iso codeNGD3094LK
Lead angle0.000
Manufacturers catalog numberNGD3094LK
Manufacturer gradeTN6025
Maximum corner radius0.0075
Maximum depth of cut in1/4
Maximum groove width (mm)2.39
Minimum groove width (mm)2.39
Minimum insert width (mm)3.00
Multi use toolYes
Number of cutting edges1
Overall length0.9860
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Single or double endSingle
StyleTop Notch Grooving Insert
TypeTop Notch Grooving Insert
