Widia

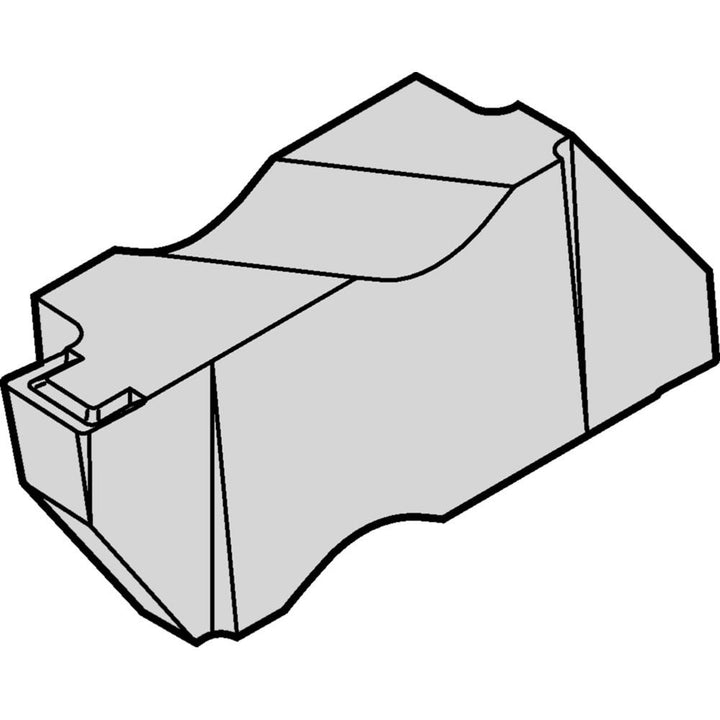

NG2062LK Carbide Insert, Grade TN6025, TiAlN - Widia 3607307
MFR# 3607307ISO/ANSI# NG2062LKCat# NG2062LKSeries NG-K
$28.10List $36.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607307 is a NG2062LK carbide indexable insert, grade TN6025, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.
Specifications
Ansi codeNG2062LK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in7/64
Cutting width in1/16
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/16
Groove width (mm)1.58
Hole diameter0.0000
Insert handLeft Hand
Insert height0.2190
Insert holding methodClamp
Insert materialCarbide
Insert seat size2
Insert size2
Insert size code2
Insert styleNG-K
Insert thickness0.2190
Iso codeNG2062LK
Lead angle11.000
Manufacturers catalog numberNG2062LK
Manufacturer gradeTN6025
Maximum corner radius0.0075
Maximum depth of cut in7/64
Maximum groove width (mm)1.58
Minimum corner radius0.0100
Minimum groove width (mm)1.58
Minimum insert width (mm)3.84
Multi use toolYes
Number of cutting edges2
Overall length0.5110
Overall width0.1510
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in7/32
TypeTop Notch Grooving Insert
