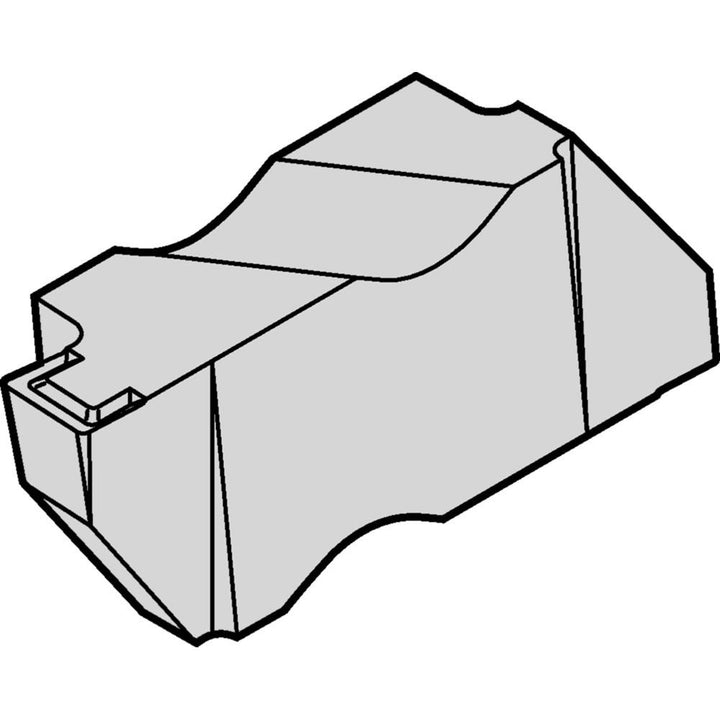

NG2M220LK Carbide Insert, Grade TN6025, TiAlN - Widia 3607367

Widia

NG2M220LK Carbide Insert, Grade TN6025, TiAlN - Widia 3607367

MFR# 3607367ISO/ANSI# NG2M220LKCat# NG2M220LKSeries NG-K

$23.26List $29.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingTiAlN

Description

The Widia 3607367 is a NG2M220LK carbide indexable insert, grade TN6025, TiAlN coated. Suited for cast iron, stainless steel, super-alloys & titanium, steel.

Specifications

Ansi codeNG2M220LK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height in7/64
Cutting width0.0866
For use withGrooving; Turning
Full radiusNo
Gage diameter in3/16
Groove width (mm)2.20
Hole diameter0.0000
Insert handLeft Hand
Insert height0.2190
Insert holding methodClamp
Insert materialCarbide
Insert seat size2
Insert size2
Insert size code2
Insert styleNG-K
Insert thickness0.2190
Iso codeNG2M220LK
Lead angle11.000
Manufacturers catalog numberNG2M220LK
Manufacturer gradeTN6025
Maximum corner radius0.0075
Maximum depth of cut in7/64
Maximum groove width (mm)2.20
Minimum corner radius0.0100
Minimum groove width (mm)2.20
Minimum insert width (mm)3.84
Multi use toolYes
Number of cutting edges2
Overall length0.5110
Overall width0.1510
Primary workpiece materialCast Iron; Stainless Steel; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Single or double endSingle
StyleTop Notch Grooving Insert
Thickness in7/32
TypeTop Notch Grooving Insert
