Widia

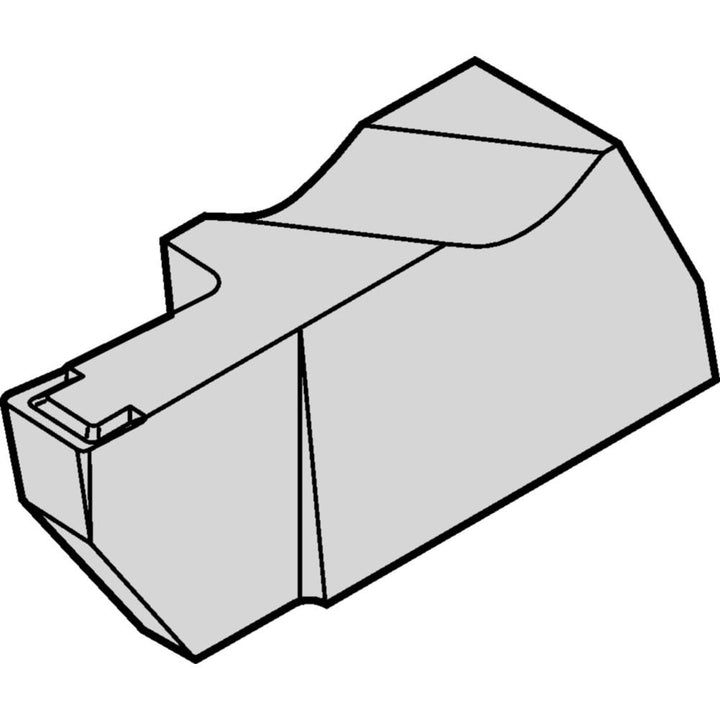

NGD4250RK Carbide Insert, Grade TN6025, TiAlN - Widia 3607414
MFR# 3607414ISO/ANSI# NGD4250RKCat# NGD4250RKSeries NGD-K
$29.43List $37.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607414 is a NGD4250RK carbide indexable insert, grade TN6025, TiAlN coated. Suited for stainless steel, cast iron, non-ferrous metal, super-alloys & titanium, steel.
Specifications
Ansi codeNGD4250RK
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0224
Cutting height in1/2
Cutting width in1/4
For use withGrooving; Turning
Full radiusNo
Groove width (mm)6.35
Hole diameter0.0000
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size4
Insert size code4
Insert styleNGD-K
Iso codeNGD4250RK
Lead angle0.000
Manufacturers catalog numberNGD4250RK
Manufacturer gradeTN6025
Maximum corner radius0.0224
Maximum depth of cut in1/2
Maximum groove width (mm)6.35
Minimum groove width (mm)6.35
Minimum insert width (mm)4.00
Multi use toolYes
Number of cutting edges1
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Super-alloys & Titanium; Steel
RakePositive
Rake angle10.000
Single or double endSingle
StyleTop Notch Grooving Insert
TypeTop Notch Grooving Insert
