Widia

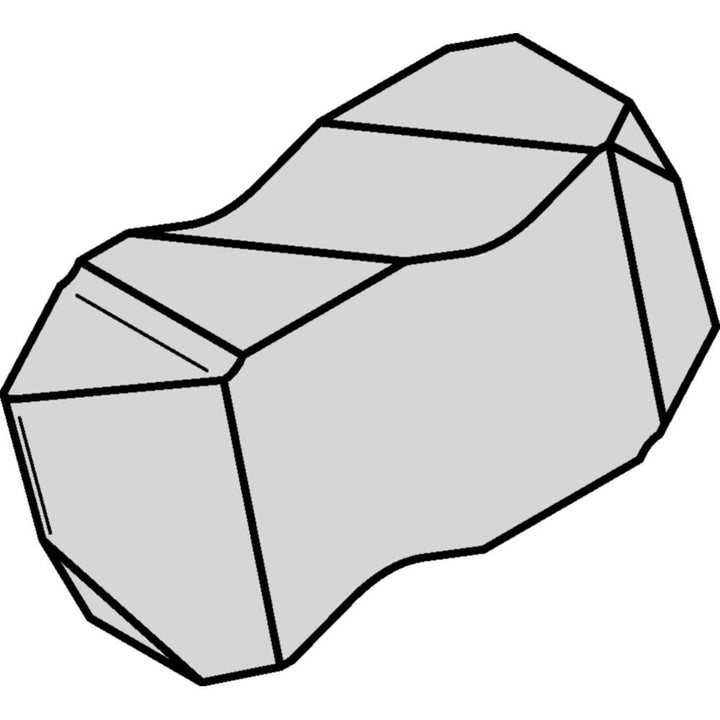

NTP3R Carbide Insert, Grade TN6010, TiAlN - Widia 3607644
MFR# 3607644ISO/ANSI# NTP3RSeries NTP
$27.74List $35.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6010
MaterialCarbide
CoatingTiAlN
Description
The Widia 3607644 is a NTP3R carbide indexable insert, grade TN6010, TiAlN coated.
Specifications
Ansi codeNTP3R
ChipbreakerPOSITIVE
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0065
External pitch1.25-4.0
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3
Insert styleNTP
Internal pitch2.0-5.0
Iso codeNTP3R
Manufacturer gradeTN6010
Material gradeTN6010
Maximum corner radius0.0065
ShapeIrregular
Thickness0.344
Thread standardUN
Thread typeInternal; External
