Widia

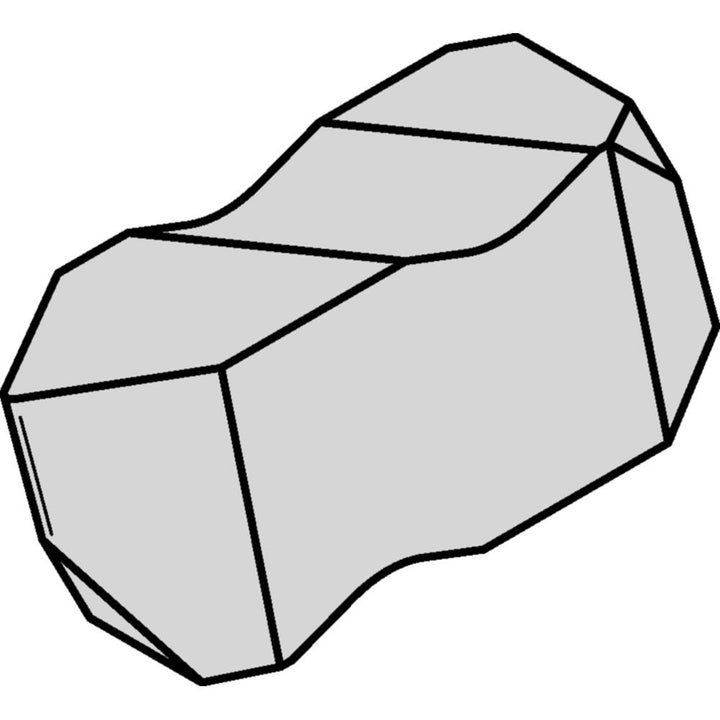

NT3R Carbide Insert, Grade TN6025, AlTiN - Widia 3607825
MFR# 3607825ISO/ANSI# NT3RSeries NT
$25.97List $33.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingAlTiN
Description
The Widia 3607825 is a NT3R carbide indexable insert, grade TN6025, AlTiN coated.
Specifications
Ansi codeNT3R
ChipbreakerFLAT
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Corner radius0.0065
External pitch1.25-4.0
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3
Insert styleNT
Internal pitch2.0-5.0
Iso codeNT3R
Manufacturer gradeTN6025
Material gradeTN6025
Maximum corner radius0.0065
ShapeIrregular
Thickness0.344
Thread standard60 Deg V
Thread typeInternal; External
