Widia

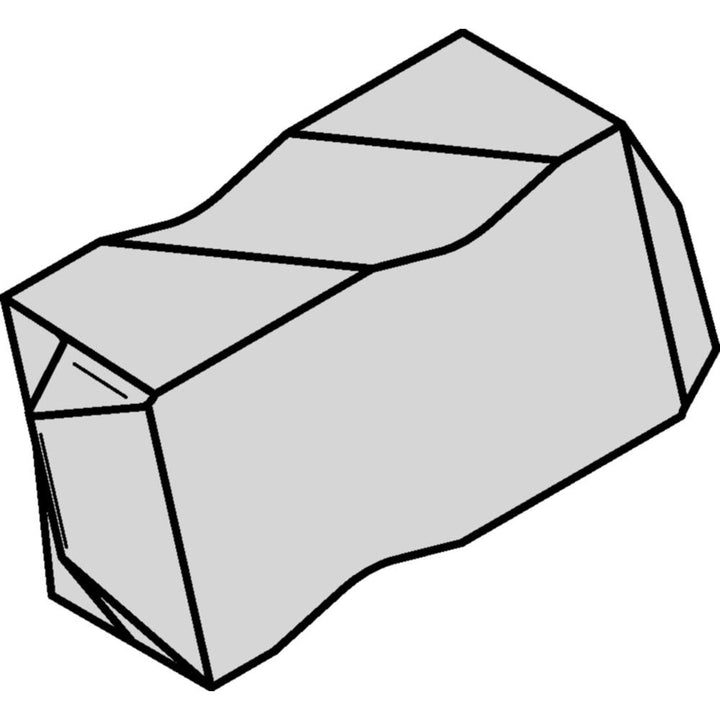

NTK3R Carbide Insert, Grade TN6025, AlTiN - Widia 3607827
MFR# 3607827ISO/ANSI# NTK3RSeries NTK
$27.41List $35.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingAlTiN
Description
The Widia 3607827 is a NTK3R carbide indexable insert, grade TN6025, AlTiN coated.
Specifications
Ansi codeNTK3R
ChipbreakerPOSITIVE
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Corner radius0.0030
External pitch0.60-2.50
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3
Insert styleNTK
Internal pitch1.0-2.5
Iso codeNTK3R
Manufacturer gradeTN6025
Material gradeTN6025
Maximum corner radius0.0030
ShapeIrregular
Thickness0.344
Thread standardUN
Thread typeInternal; External
