Widia

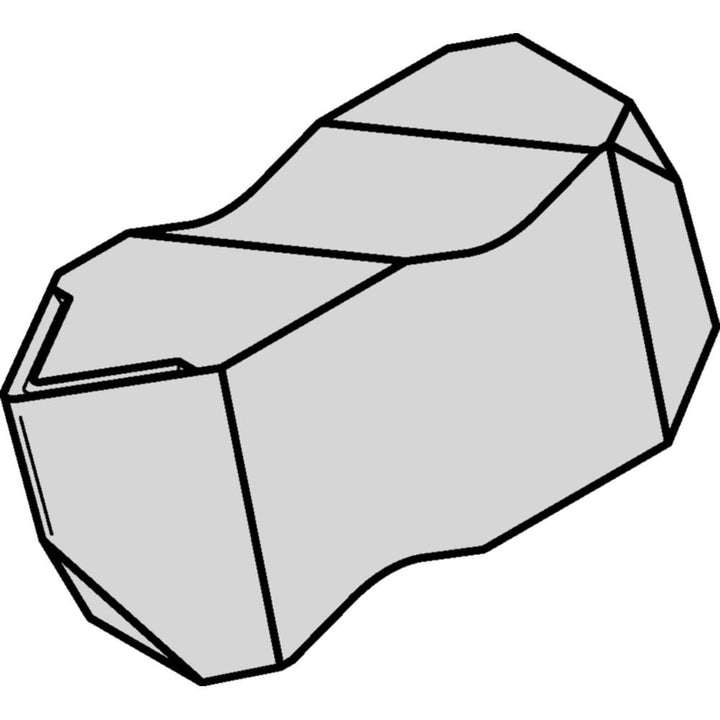

NT2LK Carbide Insert, Grade TN6025, AlTiN - Widia 3607833
MFR# 3607833ISO/ANSI# NT2LKSeries NT-K
$26.06List $33.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingAlTiN
Description
The Widia 3607833 is a NT2LK carbide indexable insert, grade TN6025, AlTiN coated.
Specifications
Ansi codeNT2LK
ChipbreakerK
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Corner radius0.0040
External pitch0.70-3.0
Finish coatingAlTiN
Included angle60
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2
Insert styleNT-K
Internal pitch1.25-3.5
Iso codeNT2LK
Manufacturer gradeTN6025
Material gradeTN6025
Maximum corner radius0.0040
ShapeIrregular
Thickness0.219
Thread standard60 Deg V
Thread typeInternal; External
