Widia
NTP2L Carbide Insert, Grade TN6025, AlTiN - Widia 3607840
MFR# 3607840ISO/ANSI# NTP2LSeries NTP
$25.11List $32.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingAlTiN
Description

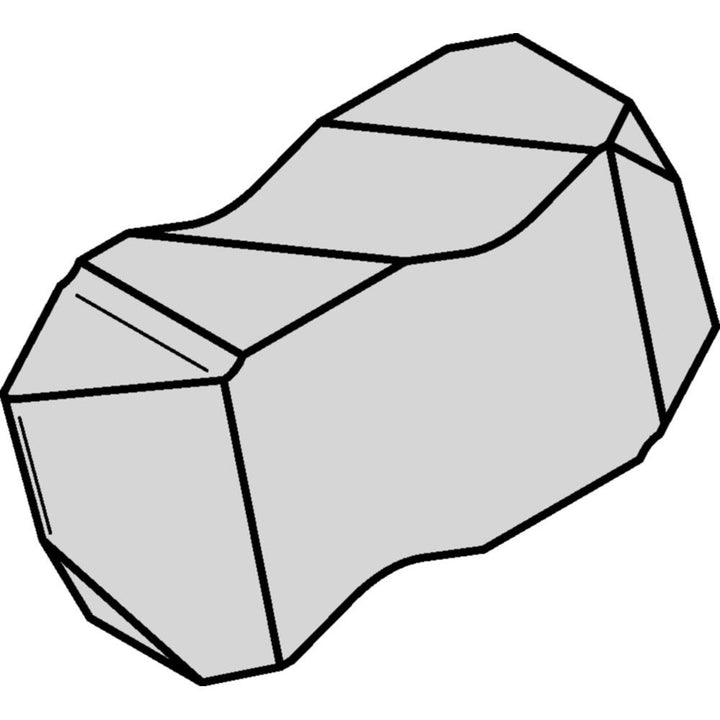

The Widia 3607840 is a NTP2L carbide indexable insert, grade TN6025, AlTiN coated.
Specifications
Ansi codeNTP2L
ChipbreakerPOSITIVE
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Corner radius0.0040
External pitch0.70-3.0
Finish coatingAlTiN
Included angle60
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2
Insert styleNTP
Internal pitch1.25-3.5
Iso codeNTP2L
Manufacturer gradeTN6025
Material gradeTN6025
Maximum corner radius0.0040
ShapeIrregular
Thickness0.219
Thread standardUN
Thread typeInternal; External
