Widia

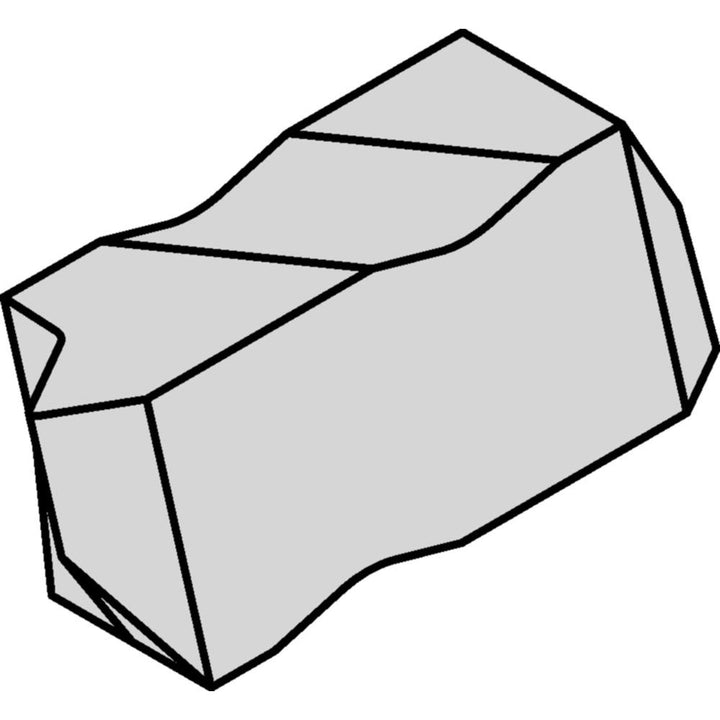

NTF2R Carbide Insert, Grade TN6025, AlTiN - Widia 3607852
MFR# 3607852ISO/ANSI# NTF2RSeries NTF
$25.11List $32.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTN6025
MaterialCarbide
CoatingAlTiN
Description
The Widia 3607852 is a NTF2R carbide indexable insert, grade TN6025, AlTiN coated.
Specifications
Ansi codeNTF2R
ChipbreakerFLAT
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Corner radius0.0030
External pitch0.60-1.75
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2
Insert styleNTF
Internal pitch1.0-2.0
Iso codeNTF2R
Manufacturer gradeTN6025
Material gradeTN6025
Maximum corner radius0.0030
ShapeIrregular
Thickness0.219
Thread standardUN
Thread typeInternal; External
