Widia
Indexable Threading Toolholders - Widia 3632114
MFR# 3632114Series A-NE
$220.85List $267.46
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

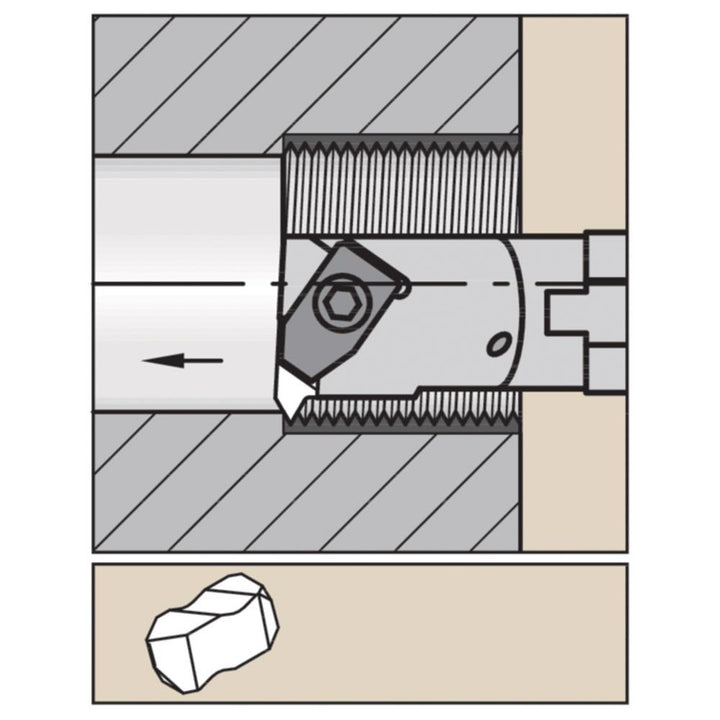

The Widia 3632114 indexable threading toolholders. Series A-NE.
Specifications
Adjustable overhangYes
Back of bar to cutting edge in13/16
Center to cutting edge0.5000
Compatible insert size code2
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size in1/8-27 NPT
Coolant throughYes
Cutting tool applicationThreading; Grooving; Chamfering
Hand of holderRight Hand
Insert compatibilityN.2L
Insert holding methodClamp
Insert inscribed circle in7/32
Insert thickness0.1500
Maximum depth of cut0.1875
Minimum bore diameter1.0000
Multi use toolYes
Overall length in10
Shank height0.0000
Shank length in10
Shank width diameter in5/8
StyleNER
Thread typeInternal
Toolholder materialSteel
Toolholder styleNER
